Portable axle scale

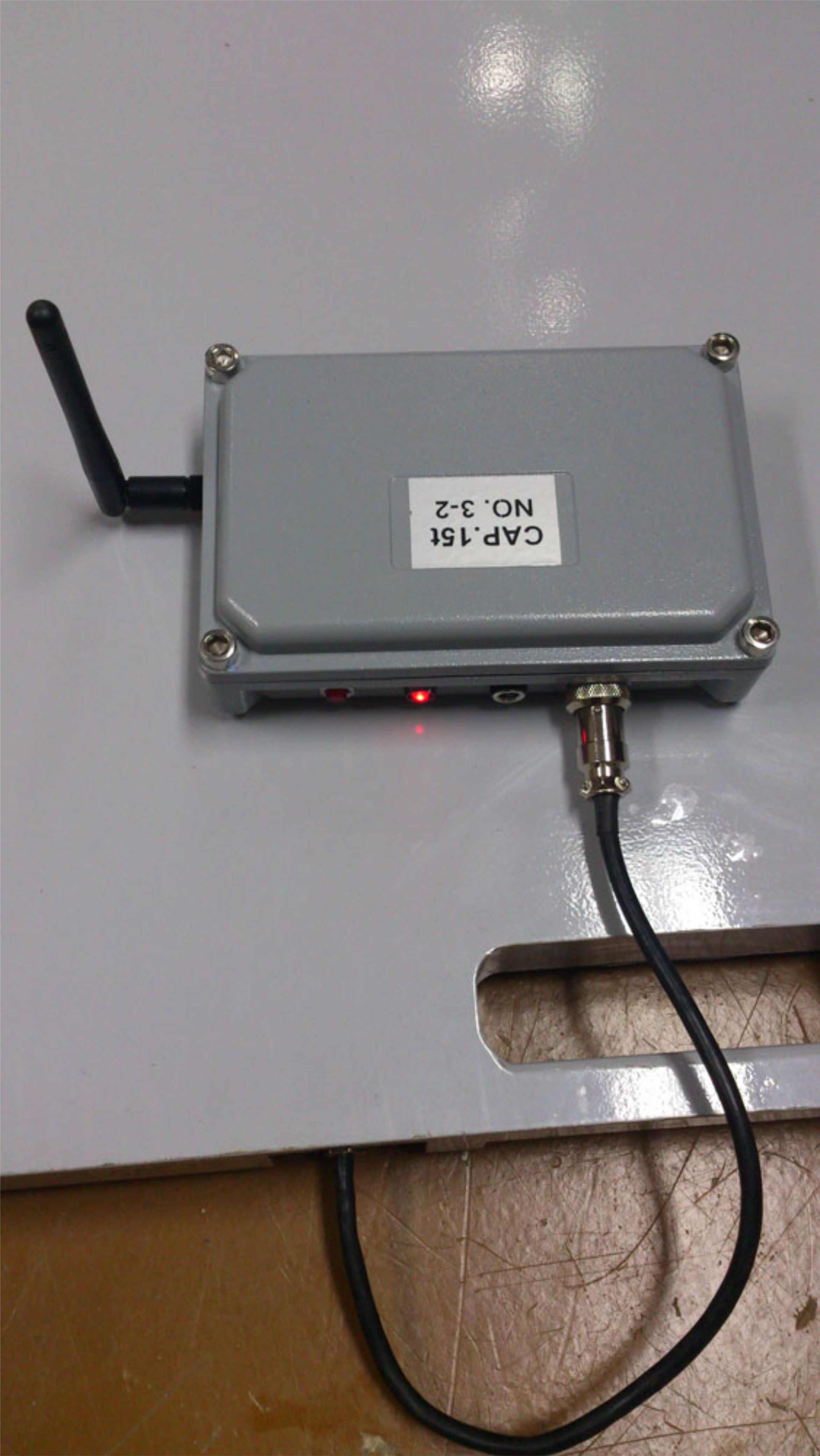

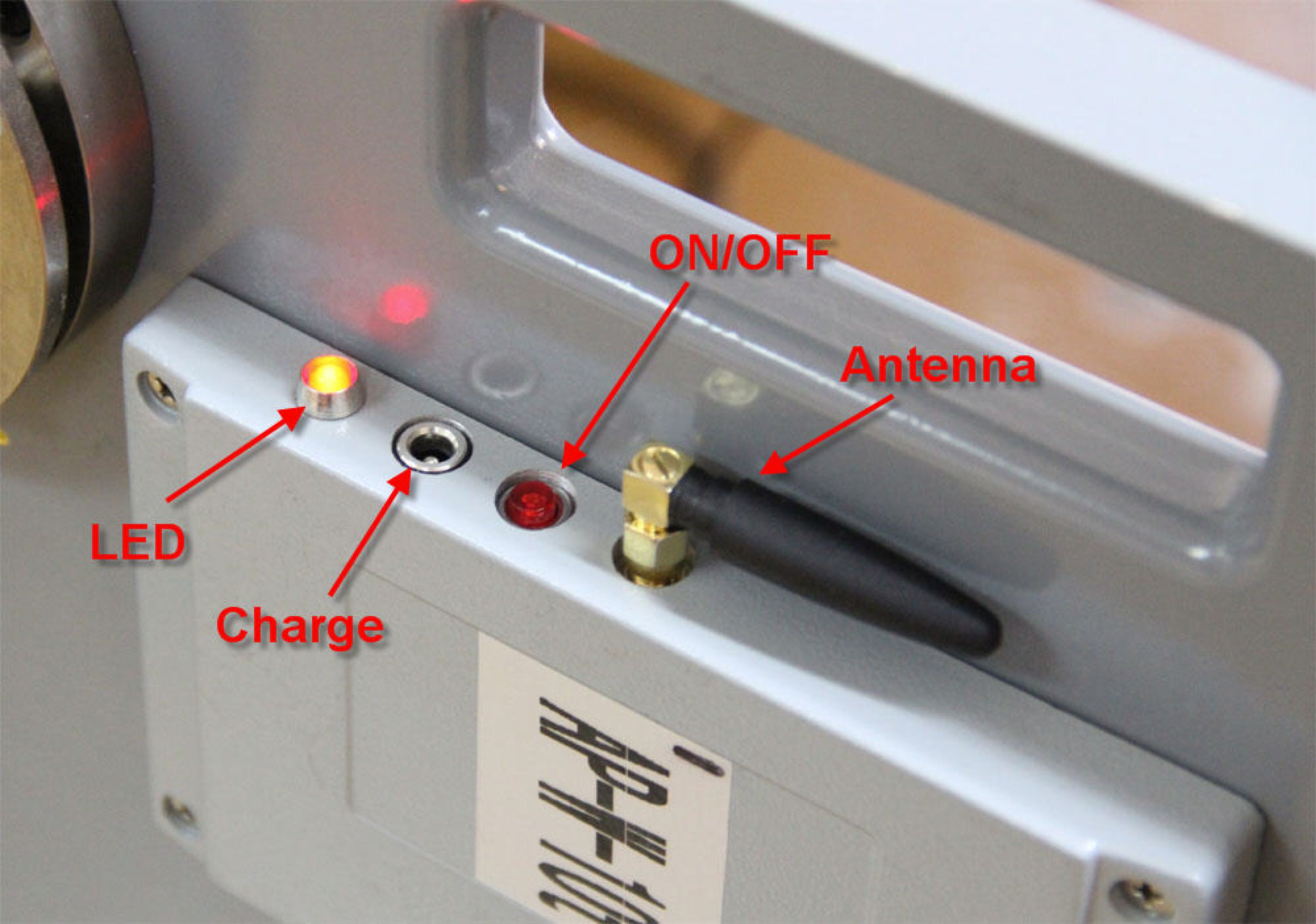

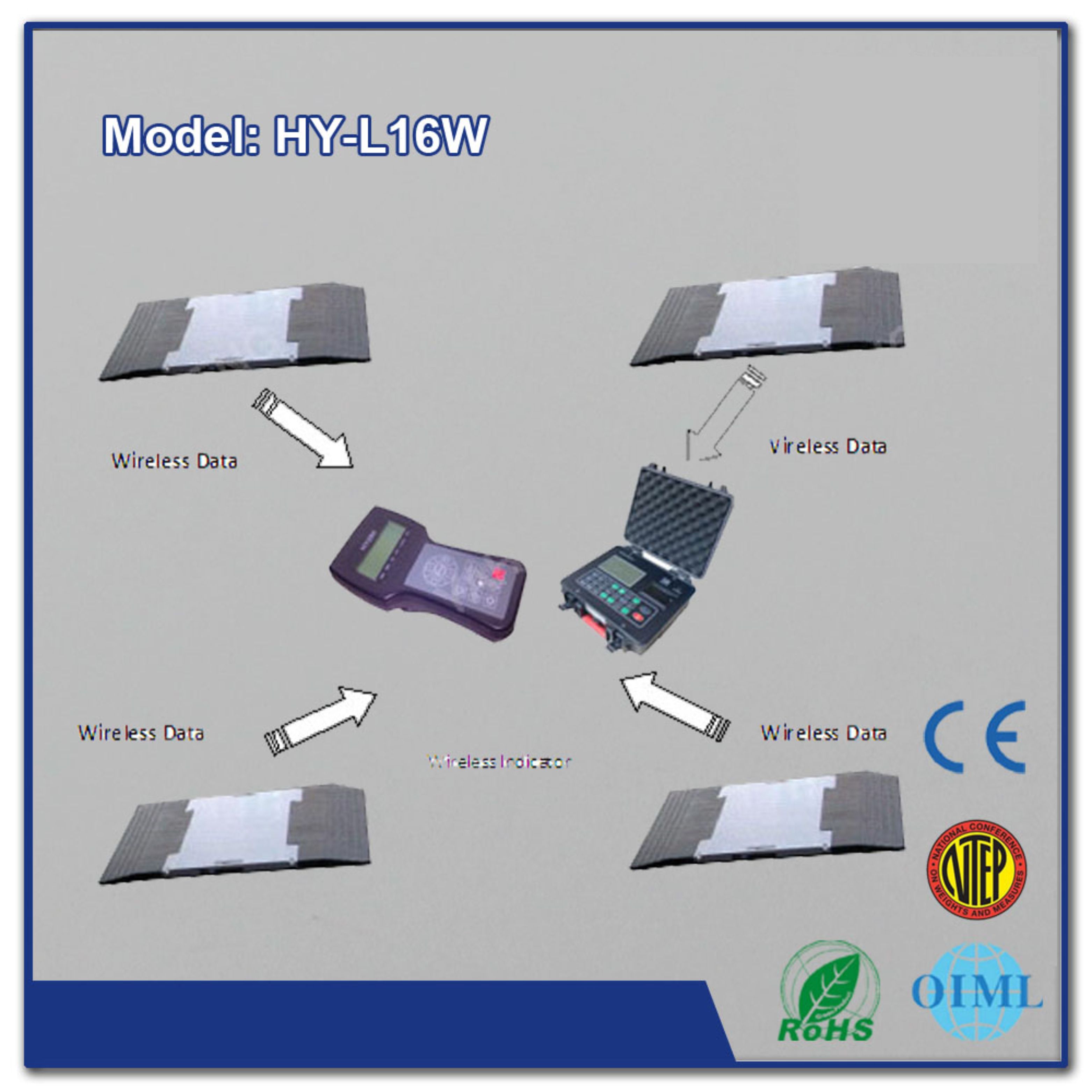

HY-L16W Wireless Portable weighing pads

◆ Light in weight, and convenient transportation.

◆ Integral flat plate construction, high frequency in dynamic response, and high precision.

◆ Applied special treatment, offering high protection class that are suitable for all kinds of environments.

◆ Adopted special material in aero-industry, with good anti-over loading ability.

◆ Assembled with rubber handles, avoided destroying of the handles.

◆ Mounted with connector and protection block, easy for changing of cables.

◆ Completed with dovetail approach, offering tight connection of the approach and the scale.

◆ Easy for loading on/off of the vehicles.

Applications:
◆ Load control and weighing for the vehicles.

◆ Measuring the weight and bary center of aeroplane.

◆ Measuring weight for special purpose.

Specifications

Output sensitivity (mV/V)	0.9±0.2	Temperature, compensated (℃)	-10～+50
Combined error (%ld)	0.5	Temperature, operating (℃)	-40～+80
Non-linearity (%ld)	0.5	Excitation, recommended (V)	9～15DC
Repeatability (%ld)	0.1	Excitation, max.(V)	20DC
Creep (%FS/30min)	0.1	Safe overload (%FS)	120
Input resistance (Ω)	3120±40	Ultimate overload (%FS)	150
Ouput Resistance (Ω)	2800±10	Protection class	IP66
Insulation resistance(MΩ)	≥5000(100VDC)	Cable Spec.	4-wire shield cable
Zero balance (%FS)	4～10%FS	Max. load for single point (t)	15
Temperature effect on sensitivity (%FS/10℃ )	0.1	Rated capacity (t)	10t
Temperature effect on zero (%FS/10℃)	0.1
Connections: Red Input(+) Black Input(-) Green Output(+) White Output(-)

Specification:
