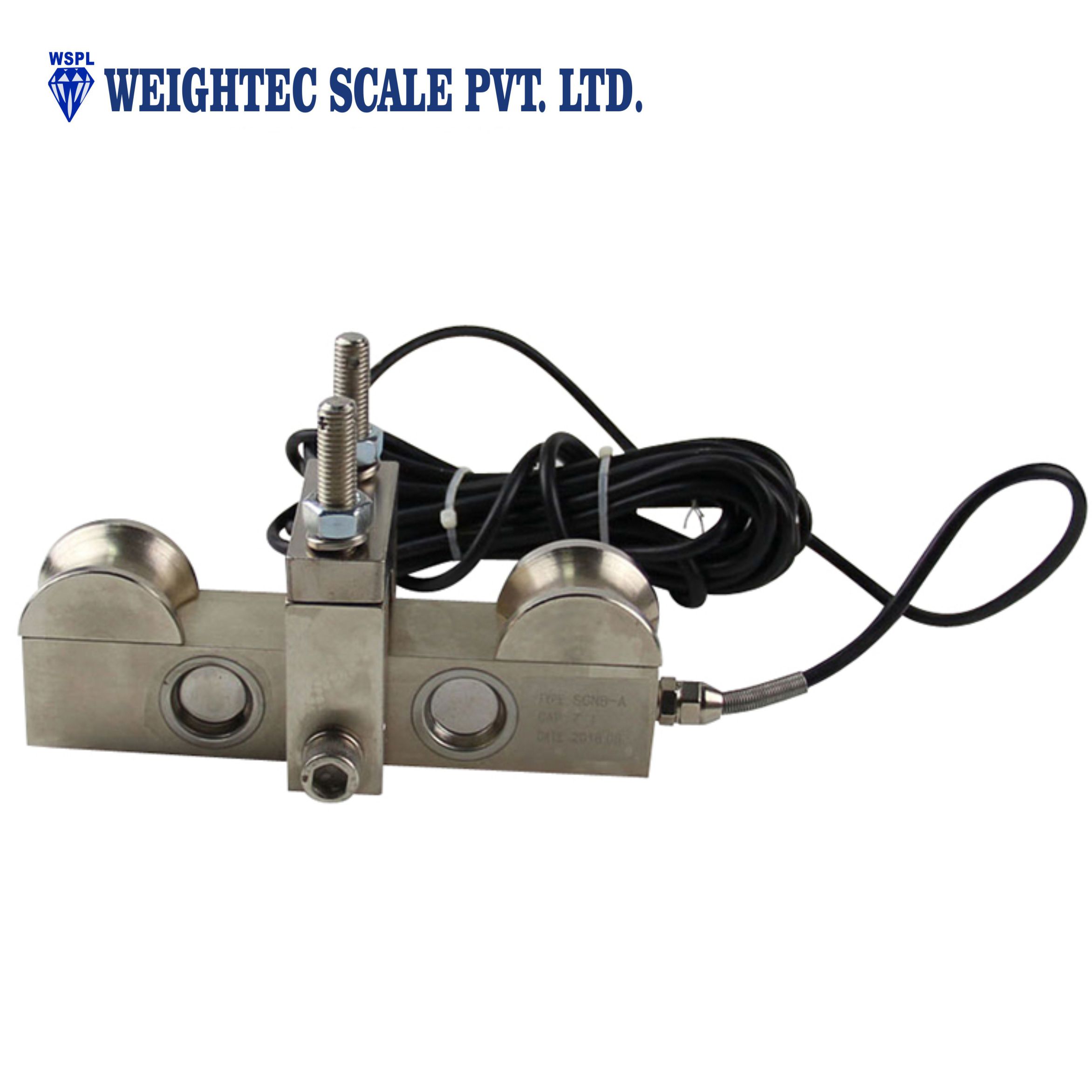

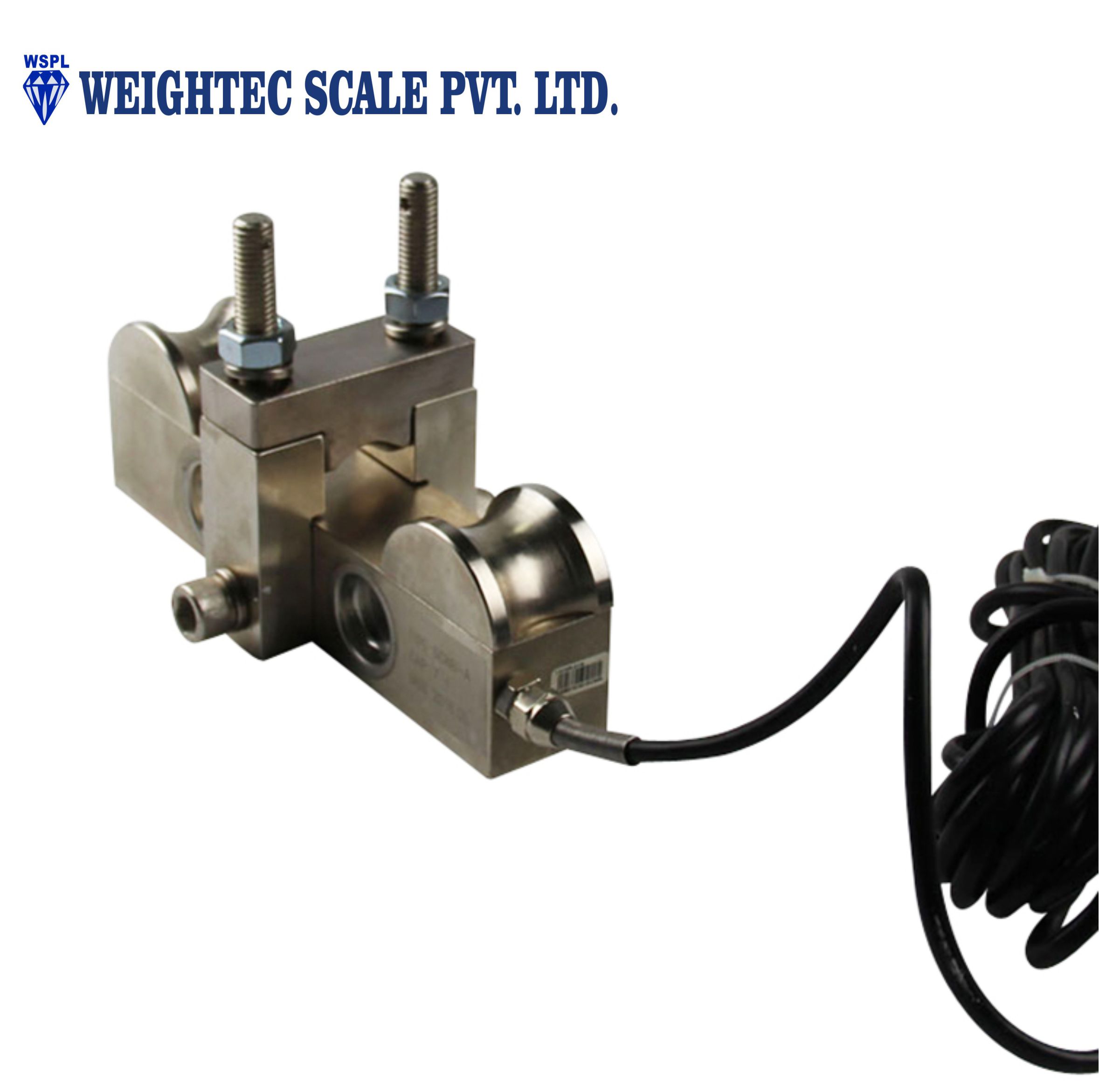

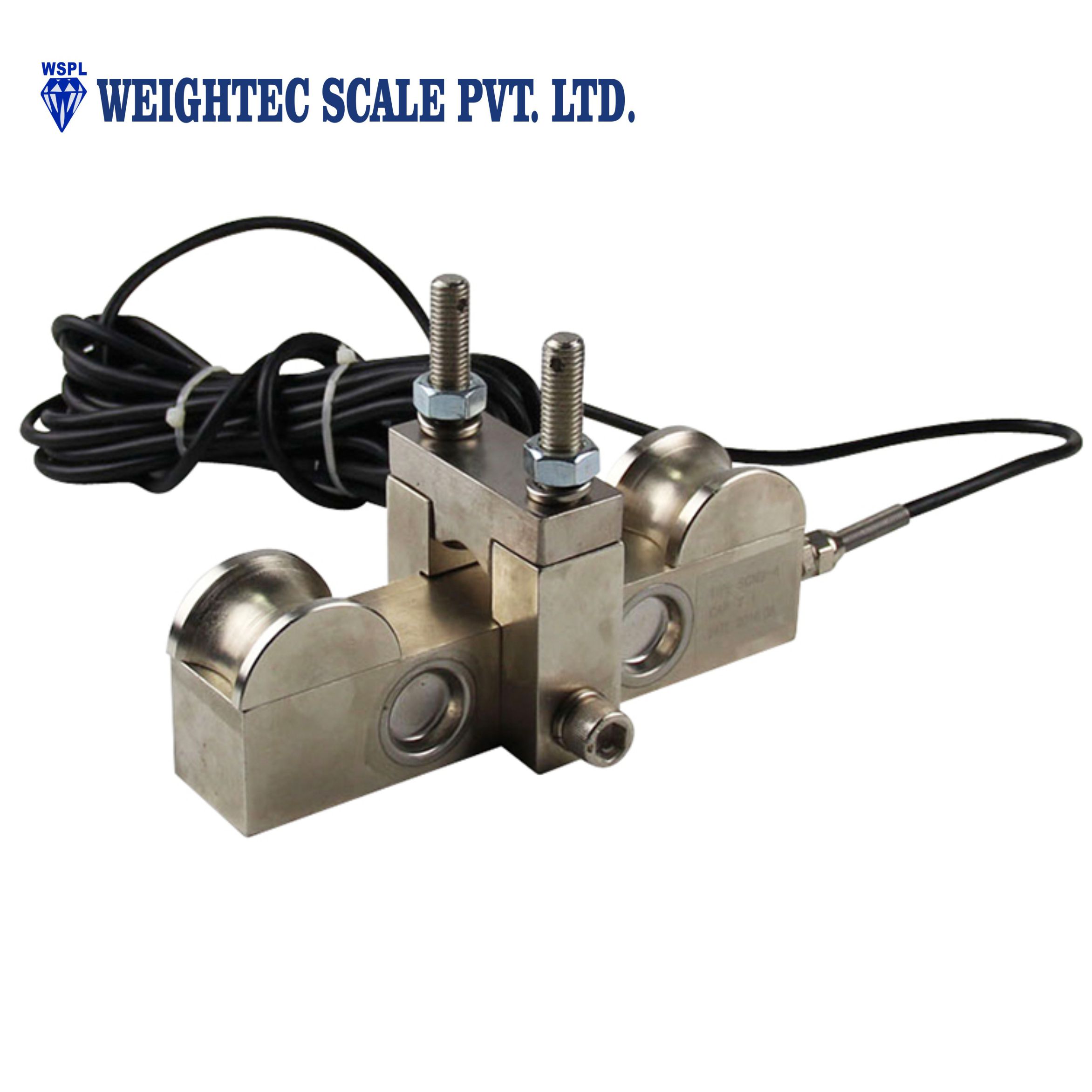

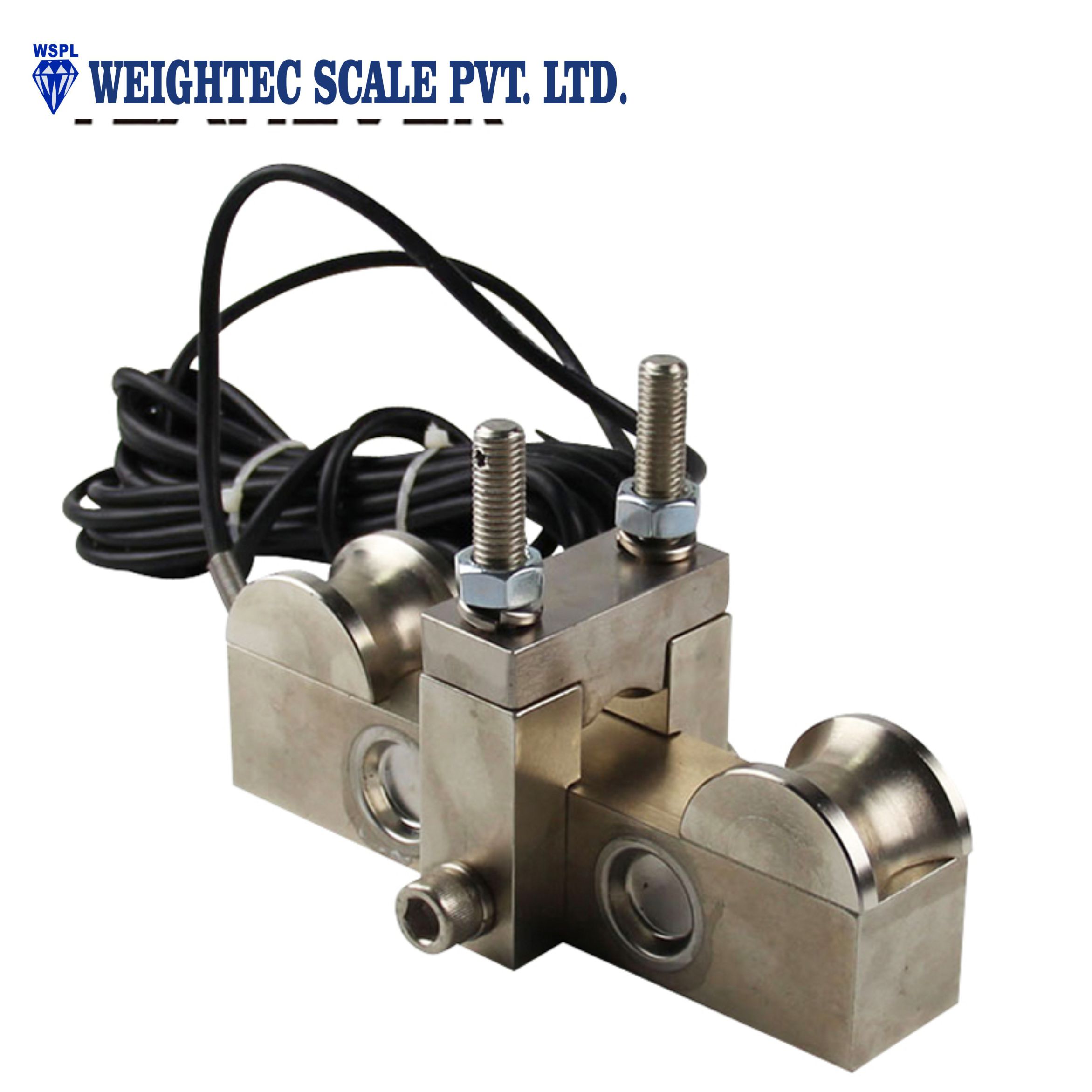

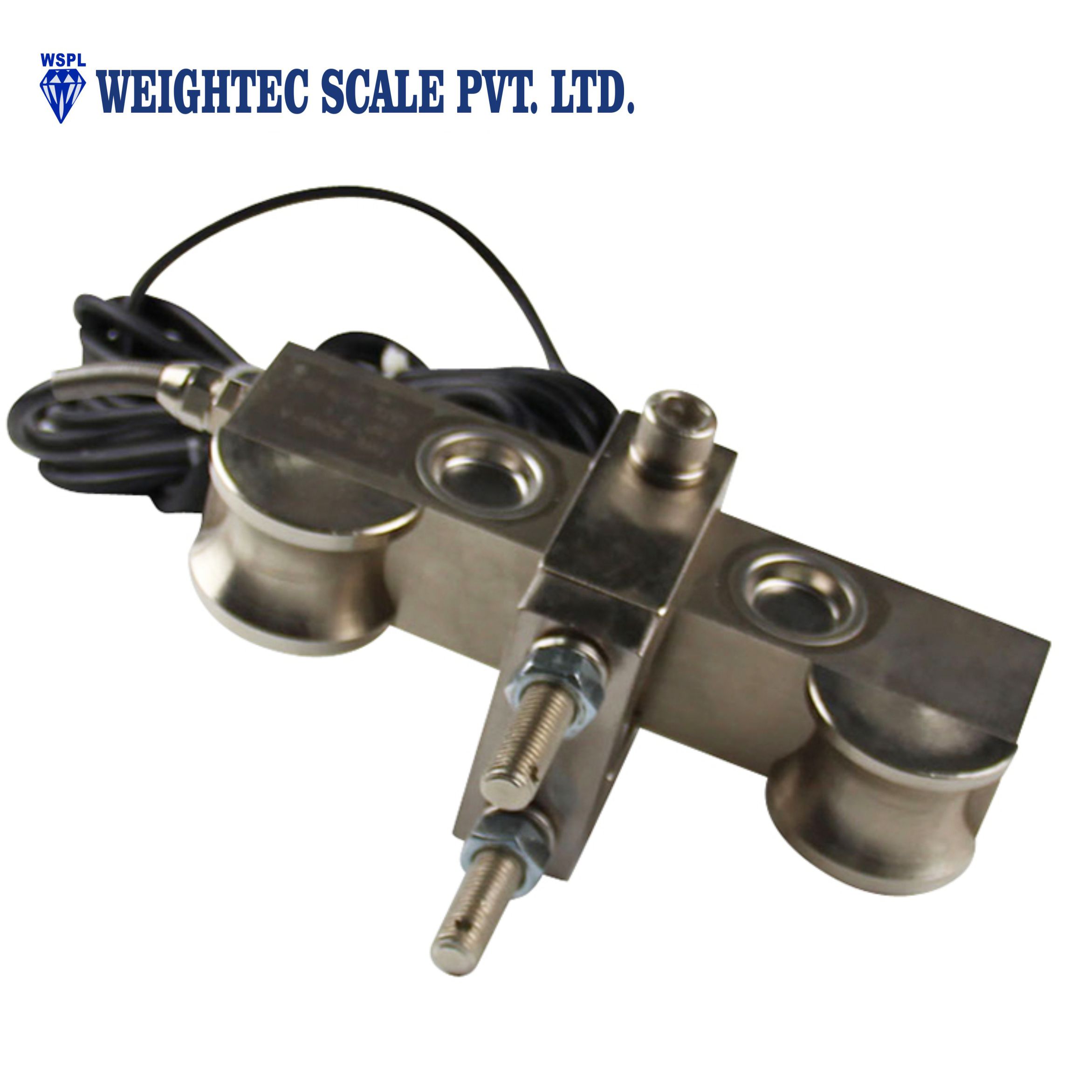

SCNB-2

1,2,3,5,10t

Sensitivity

1.0mv/v

Total error

± 0.5%FS

Creep error

± 0.1%FS

Zero balance

± 1%FS

TCO

± 0.05%FS/ 1 0 ℃

TC SPAN

± 0.05%FS/ 1 0 ℃

Input impedance

385 ± 5 Ω

Output impedance

350 ± 2 Ω

Insulation impedance

≥ 5000M Ω

Explosion protection

ExiallCT6

Temperature range

-30~+ 70 ℃

Maximum safe overload

150%FS

Ultimate overload

200%FS

Excitation ,recommend

5~12V

Excitation ,maximum

15V

Protection class

IP68

Construction

Alloy steel

cable

Length: 1m

Mode Of Connection

Red:excitation+

Black:excitation-

Green:signal+

White:signal-
