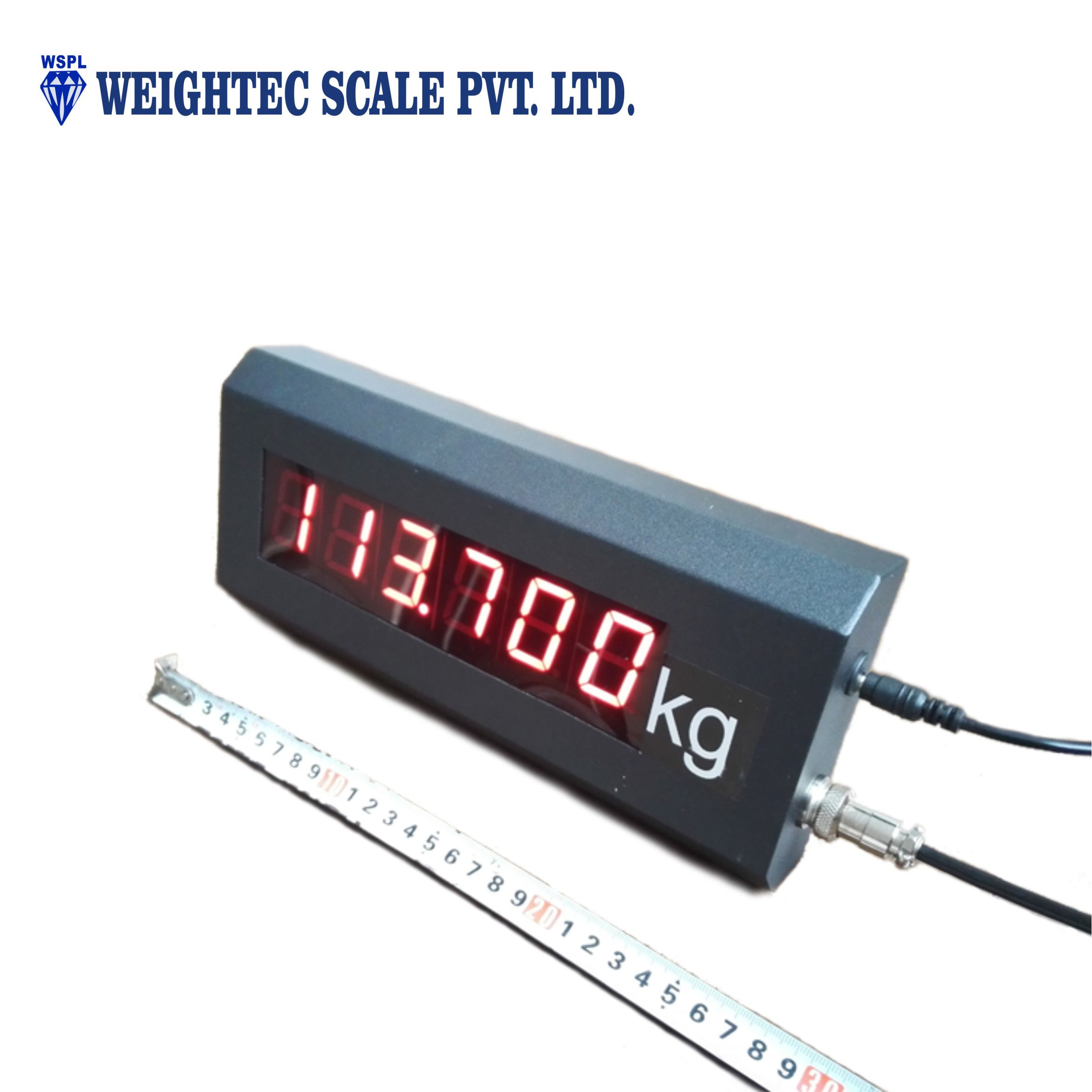

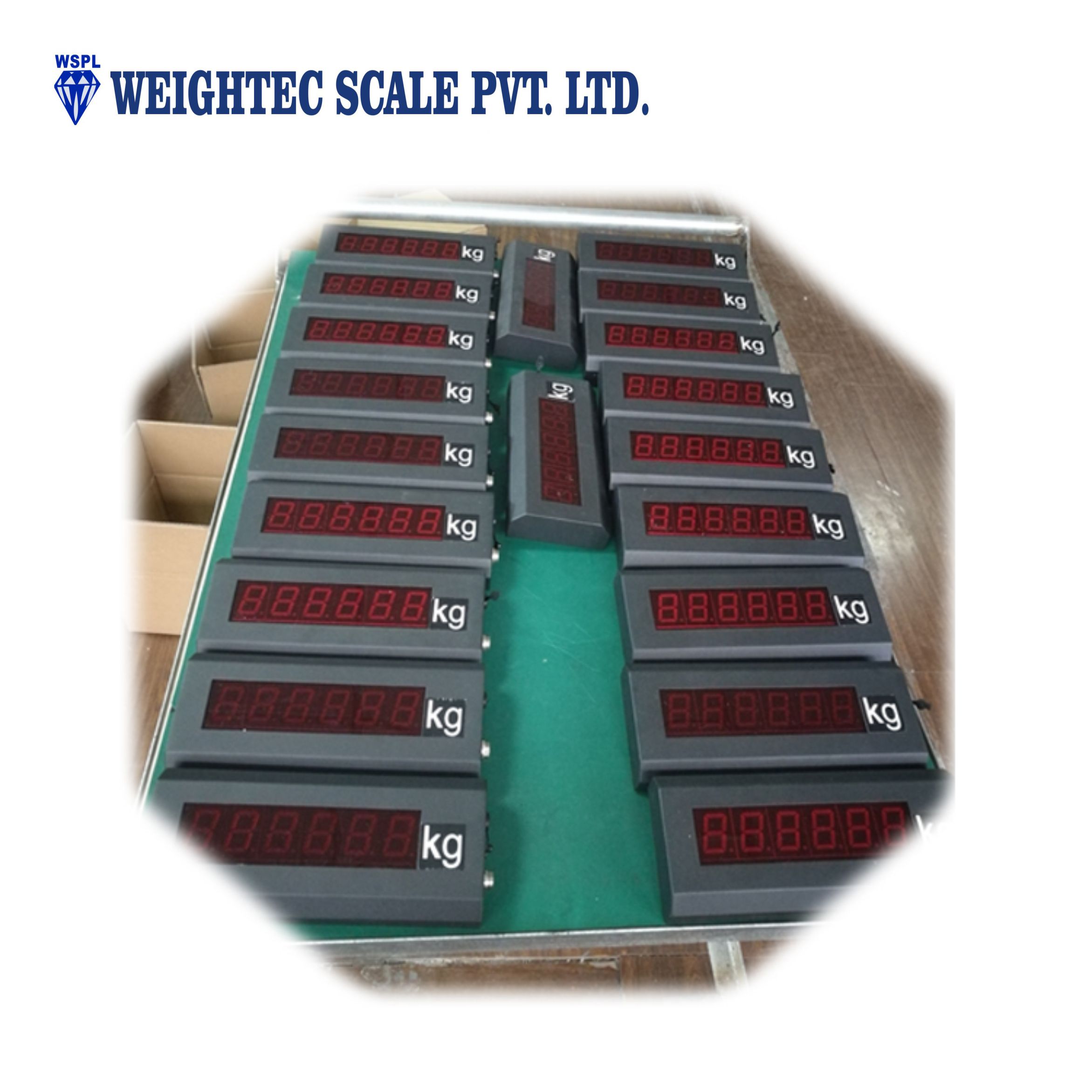

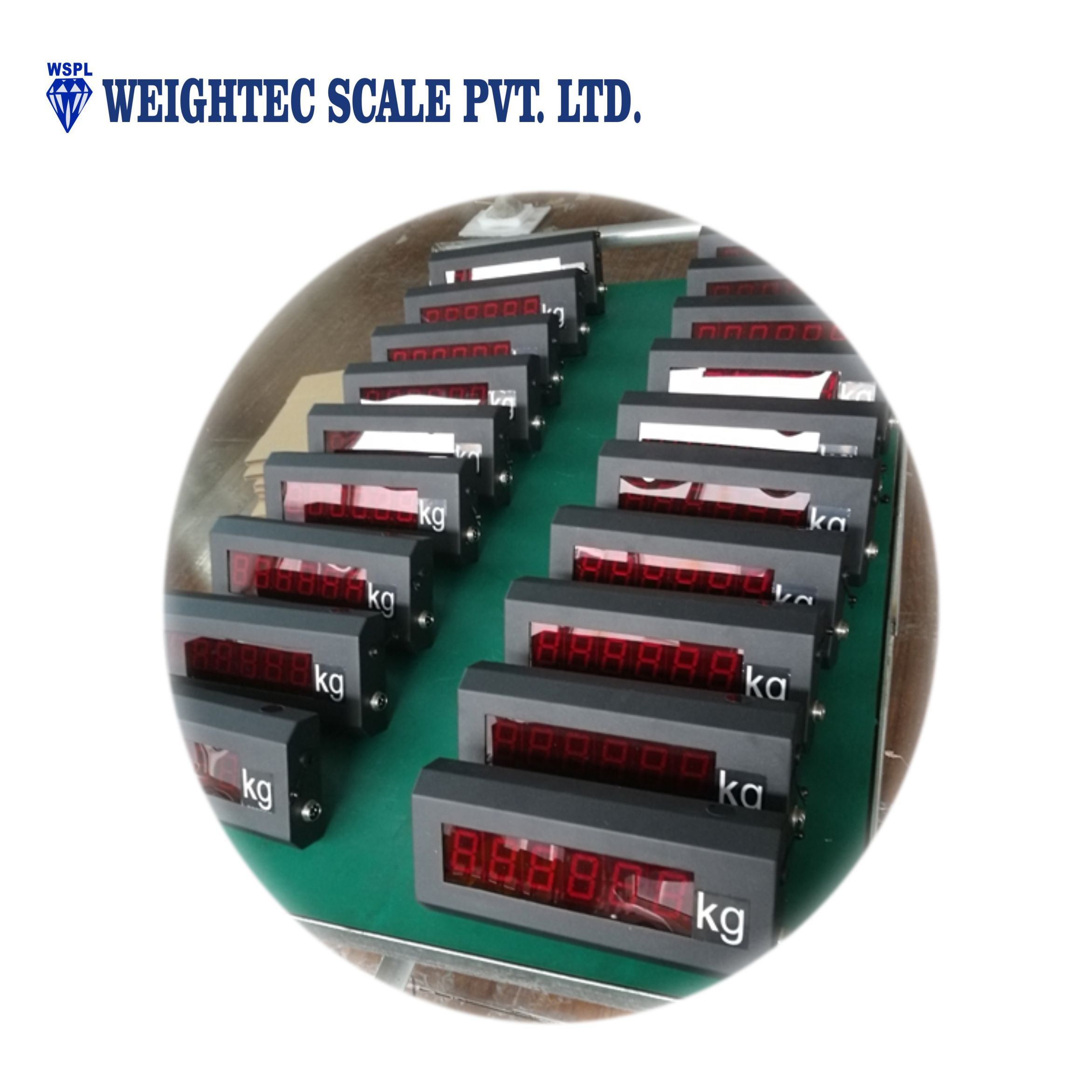

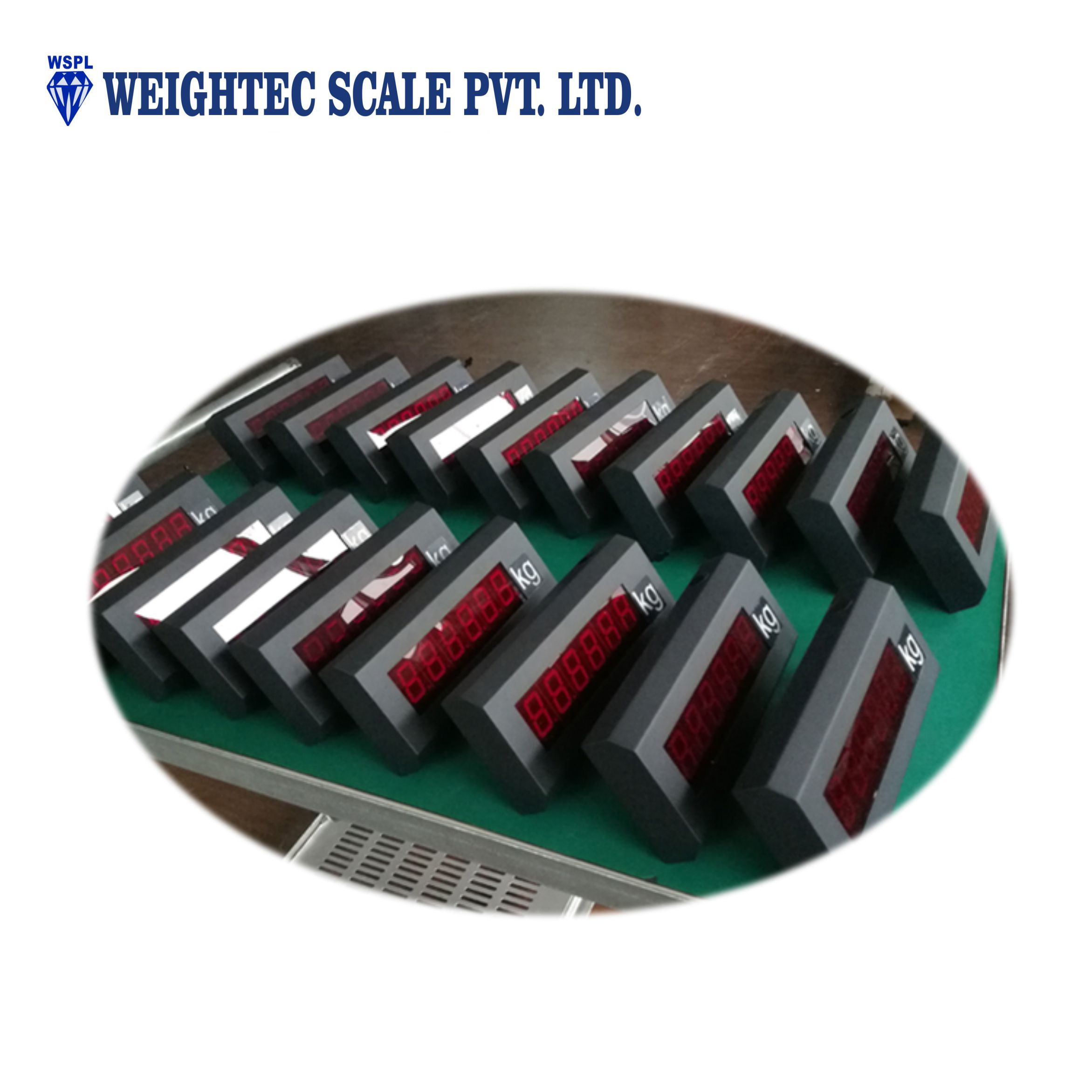

◆ display character: 6 LED (1.2 inch)
◆ power: AC 187 ~ 242V 49 ~ 51Hz or DC6~12V
The communication interface: Current loop or RS232 ;
◆ use environment temperature: 0 ~ 40 ℃;
The use of environmental humidity: ≤ 85%RH;
RS232 mode (Baud 600 or 9600)
|
|
BD interface |
Indicator interface |
|
Pin1 |
|
|
|
Pin2 |
|
|
|
Pin3(RXD) |
TXD |
|
|
Pin4 |
|
|
|
Pin5(GND) |
GND |
(Default) Current loop mode (Baud 600)
|
|
BD interface |
Indicator interface |
|
Pin1-Pin4 connect |
|
|
|
Pin2 |
+OUT |
|
|
Pin3 |
|
|
|
Pin4 |
|
|
|
Pin5 |
-OUT |
