Model |

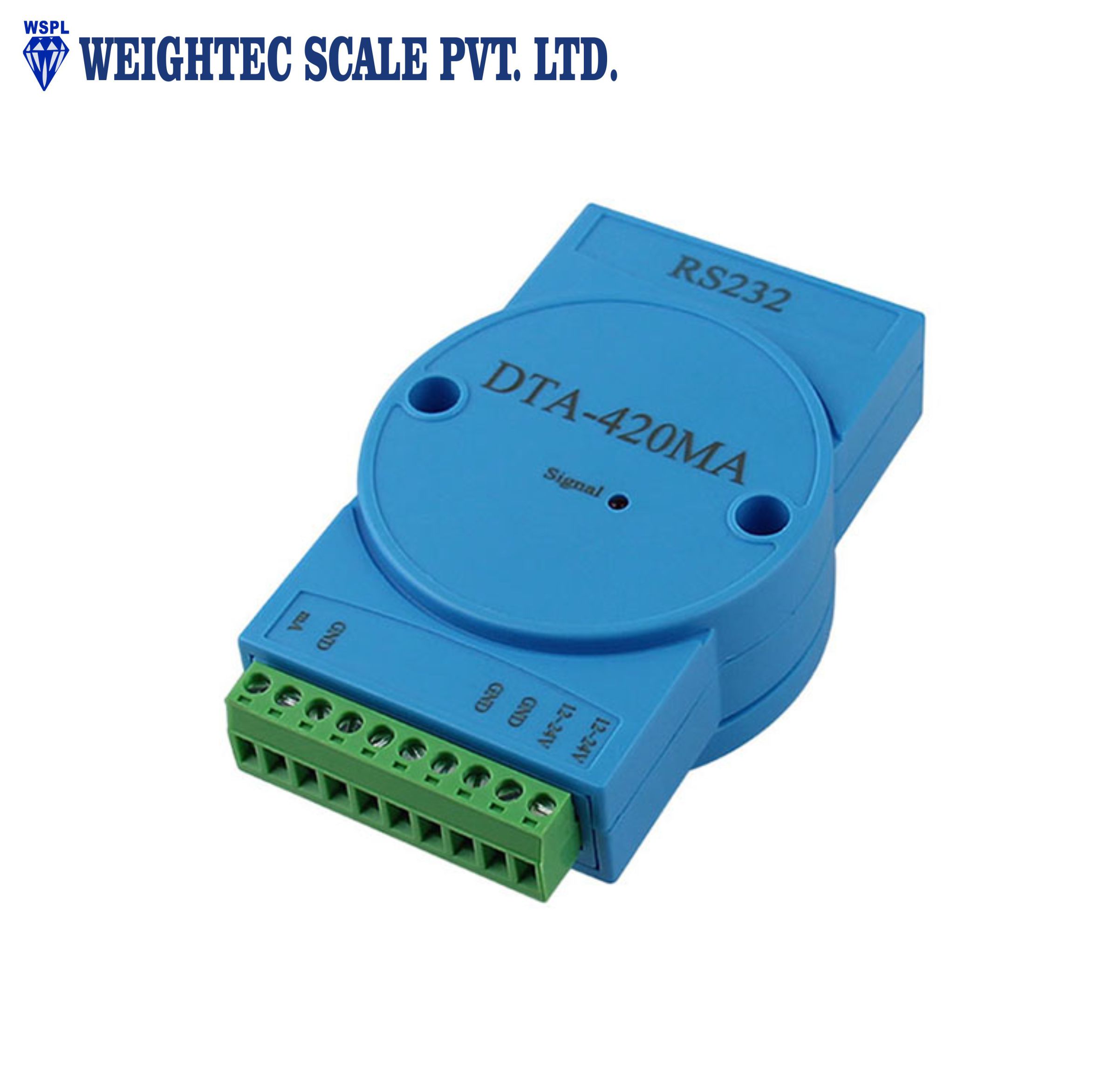

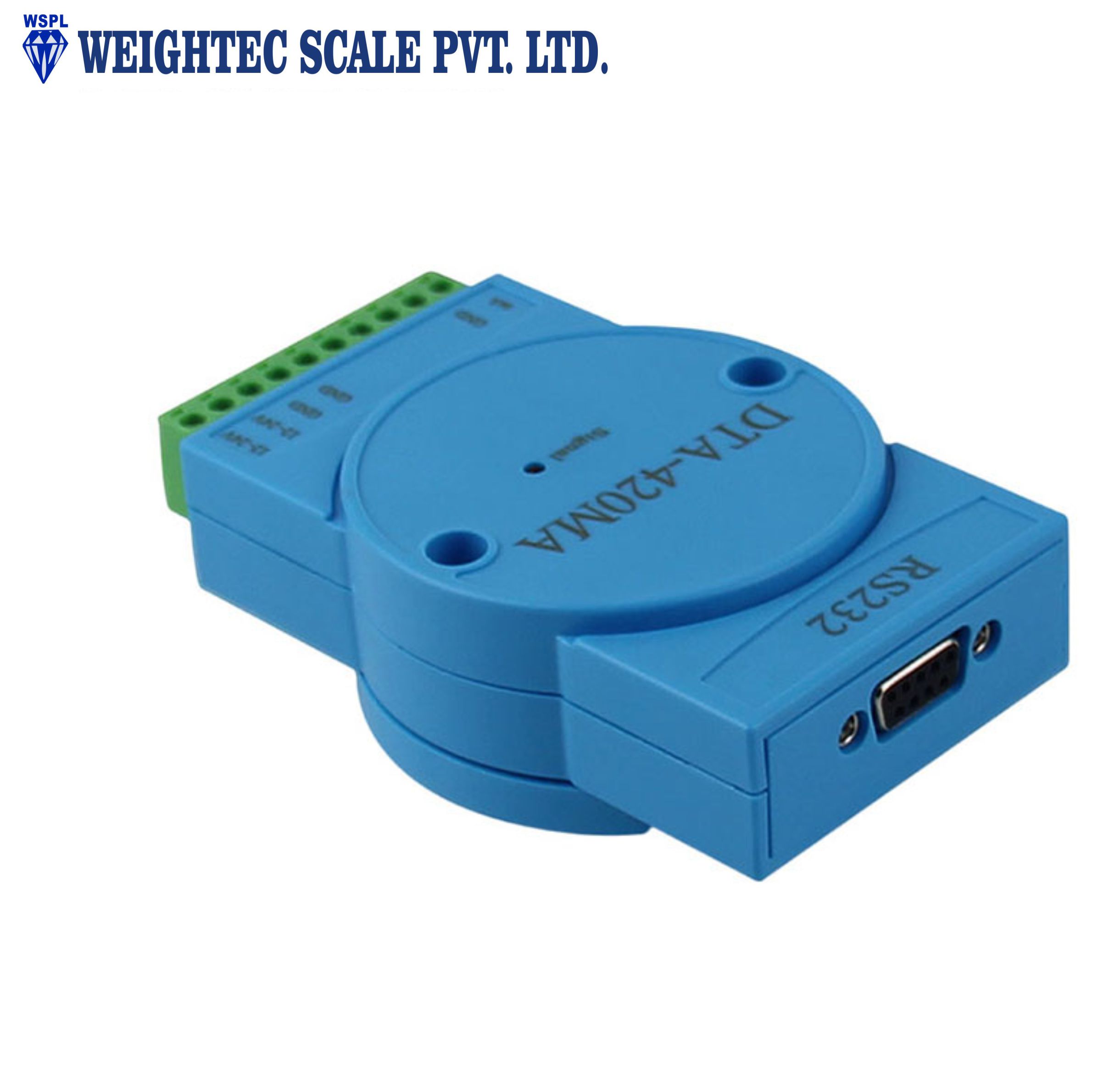

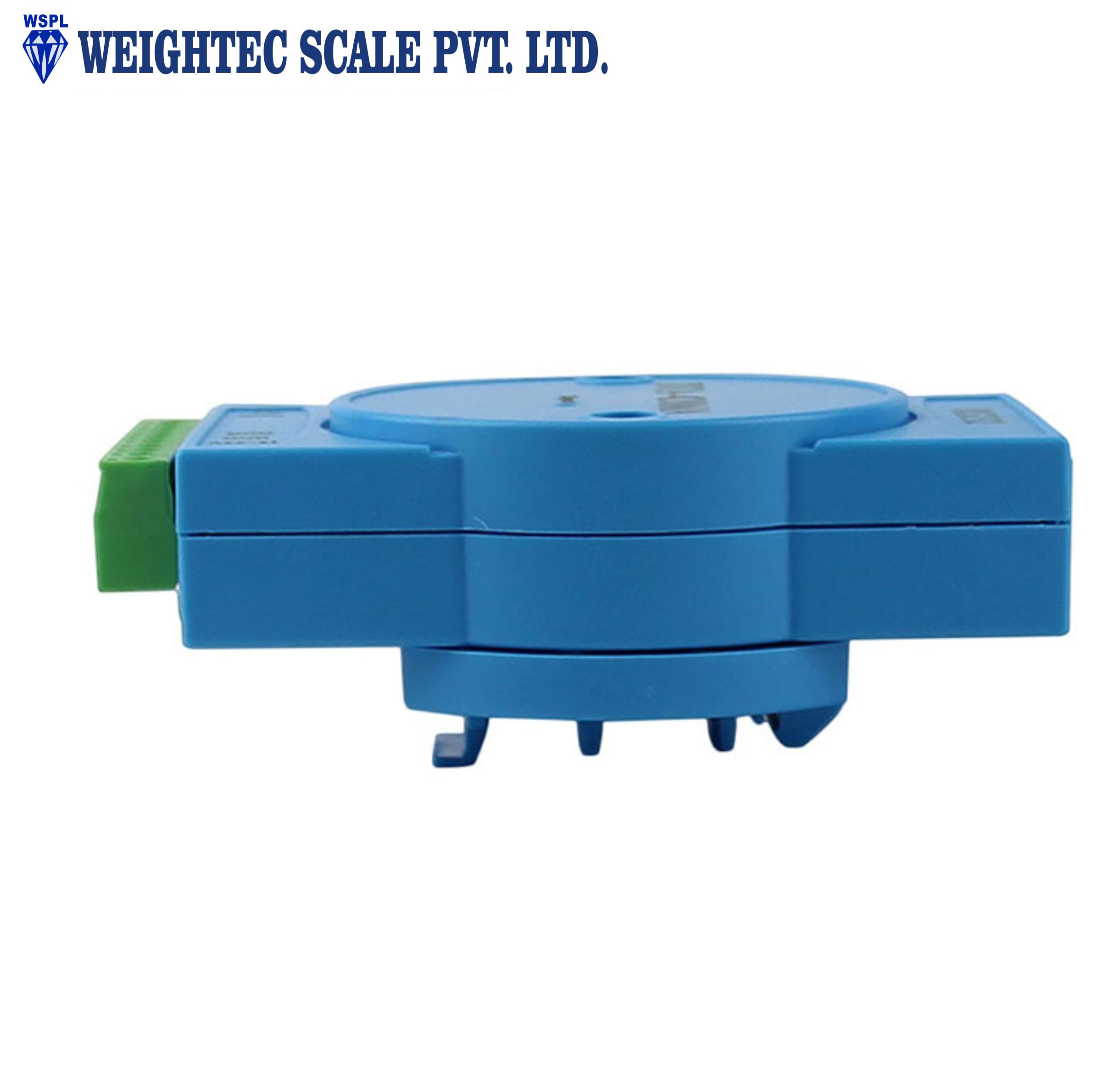

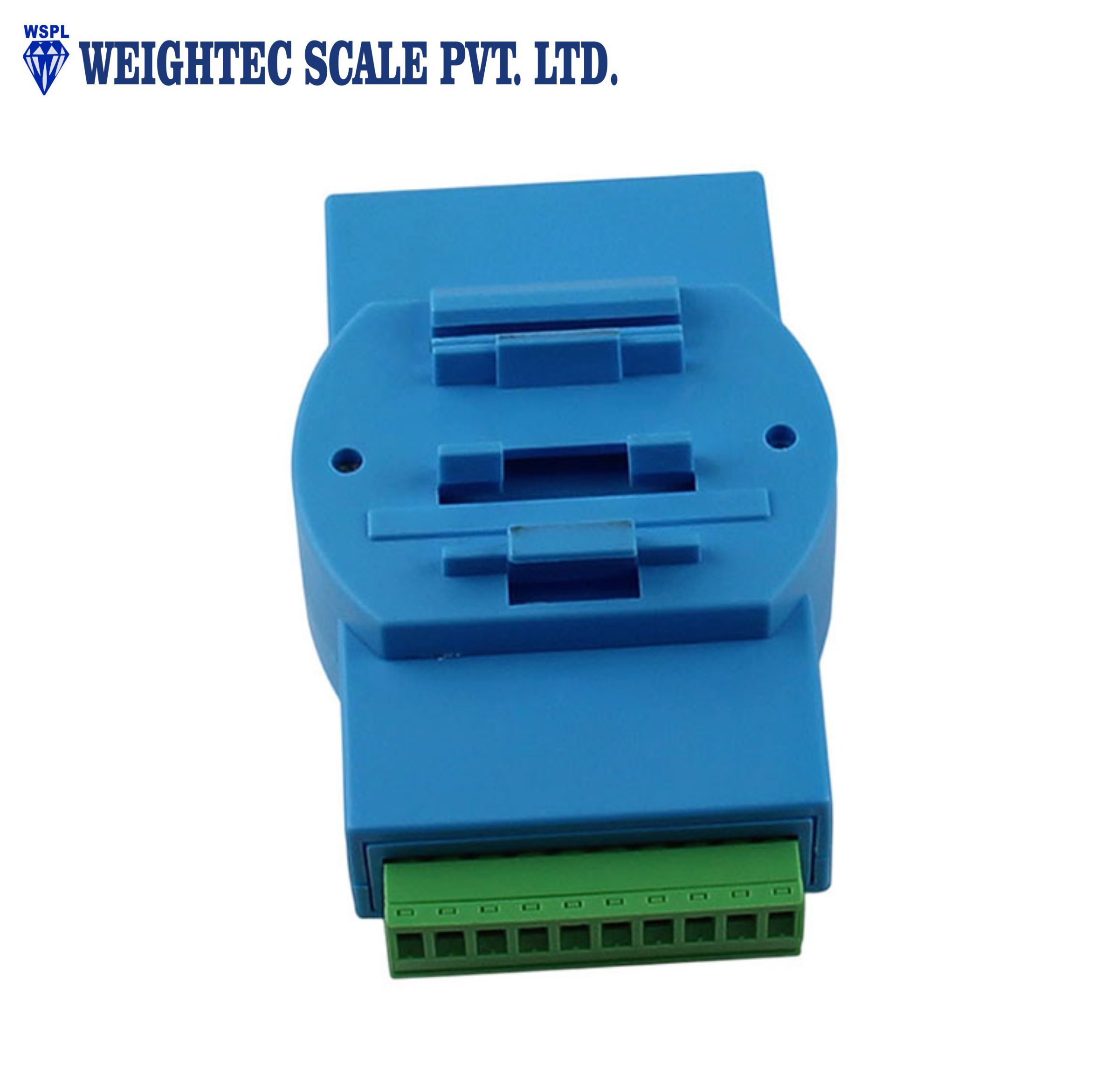

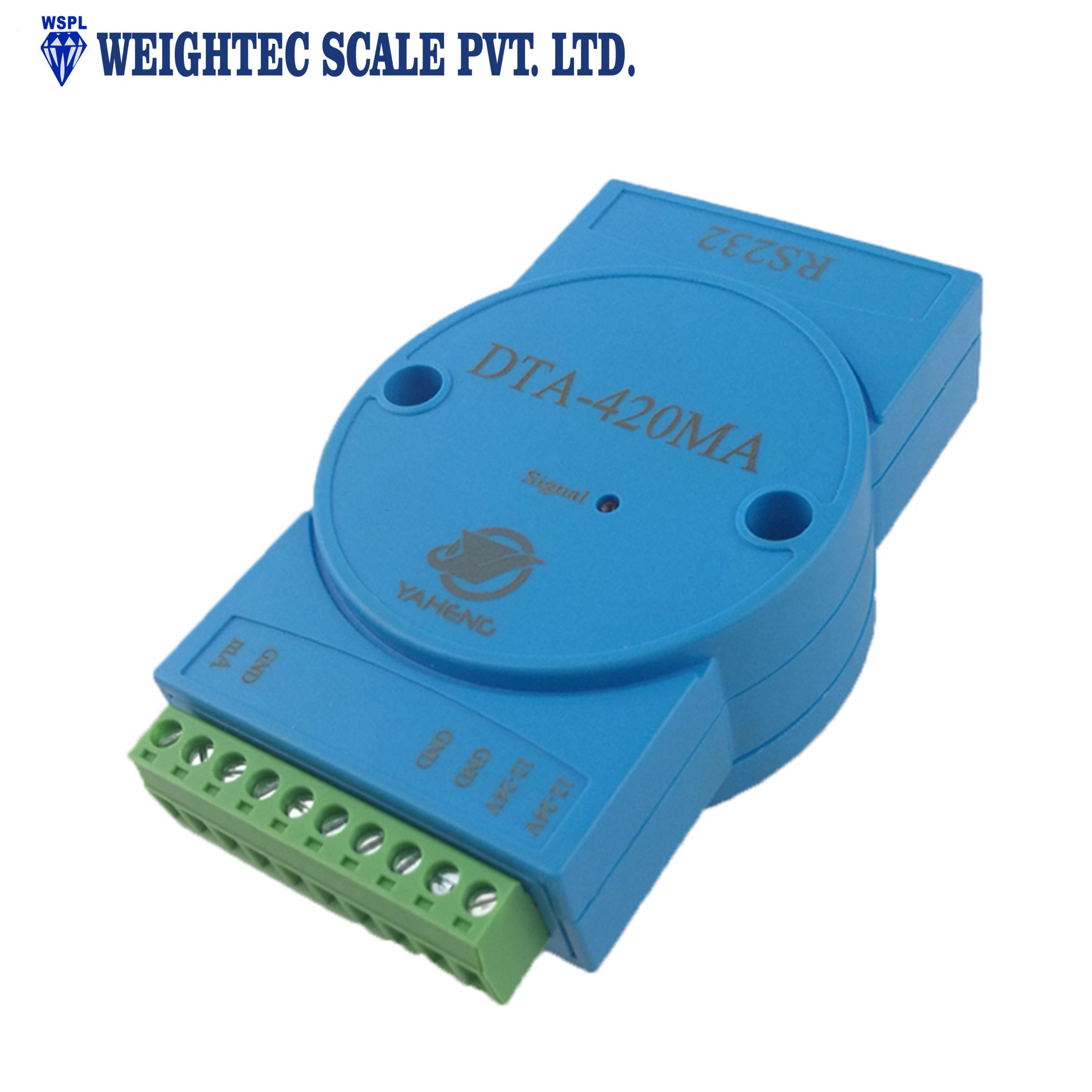

DTA420MA |
|
Supply power |
DC12~24v |
|
Input signal |
RS232(Default) or RS485 |
|
Output signal |
4~20mA/0~20mA/0~24mA 0~5V/0~10V |
|
Precision |
1/4000(12 bit) or 1/10000 (16bit) |
|
Gain control |
Communication command |
|
Work of temperature |
-20~50 degree |
|
Communication protocol |
YAHENG communication protocol (Customizable protocol) |
|
Input interface |
DB9 PIN2: TXD PIN3:RXD PIN5:GND |
|
Dimension |
112*70*27mm |
