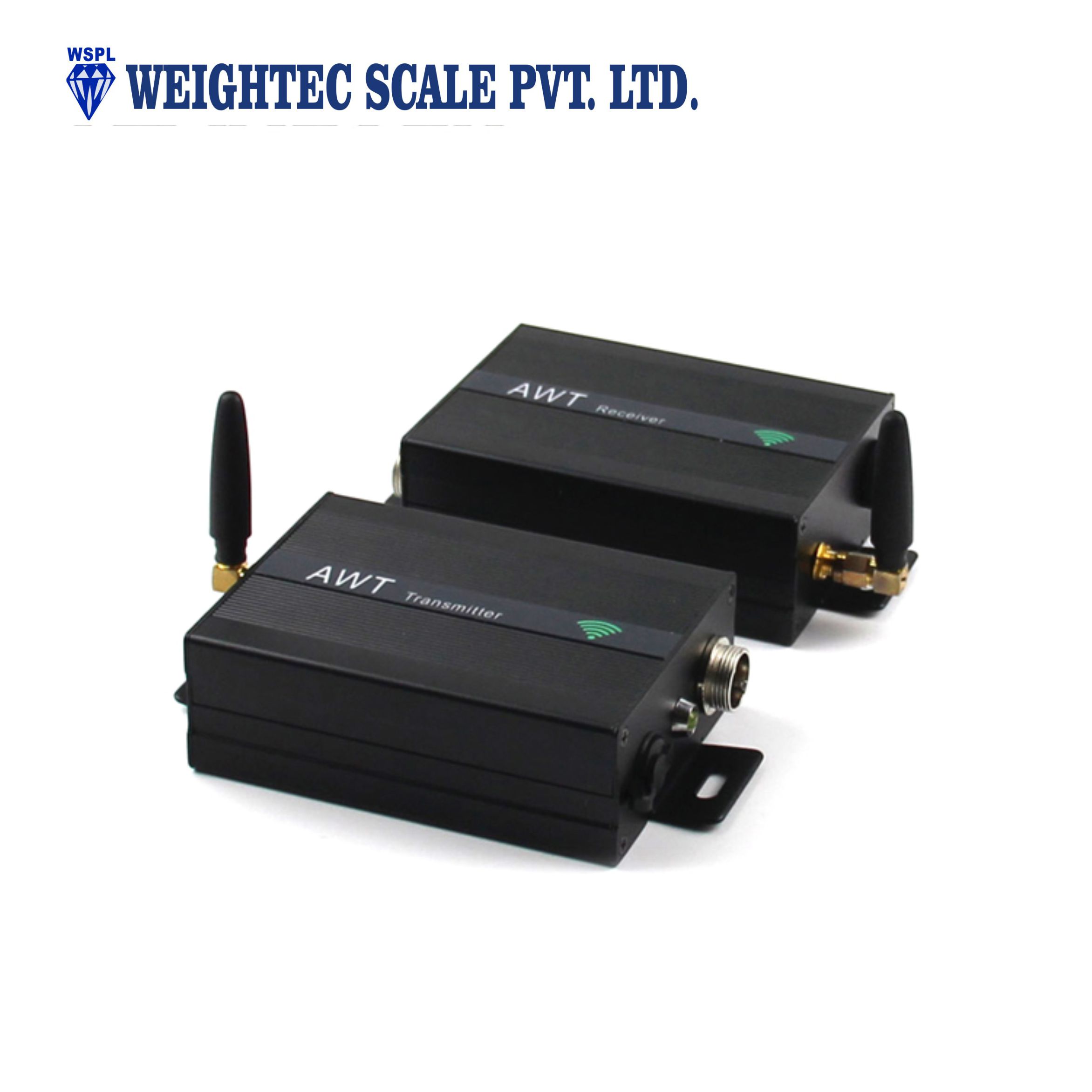

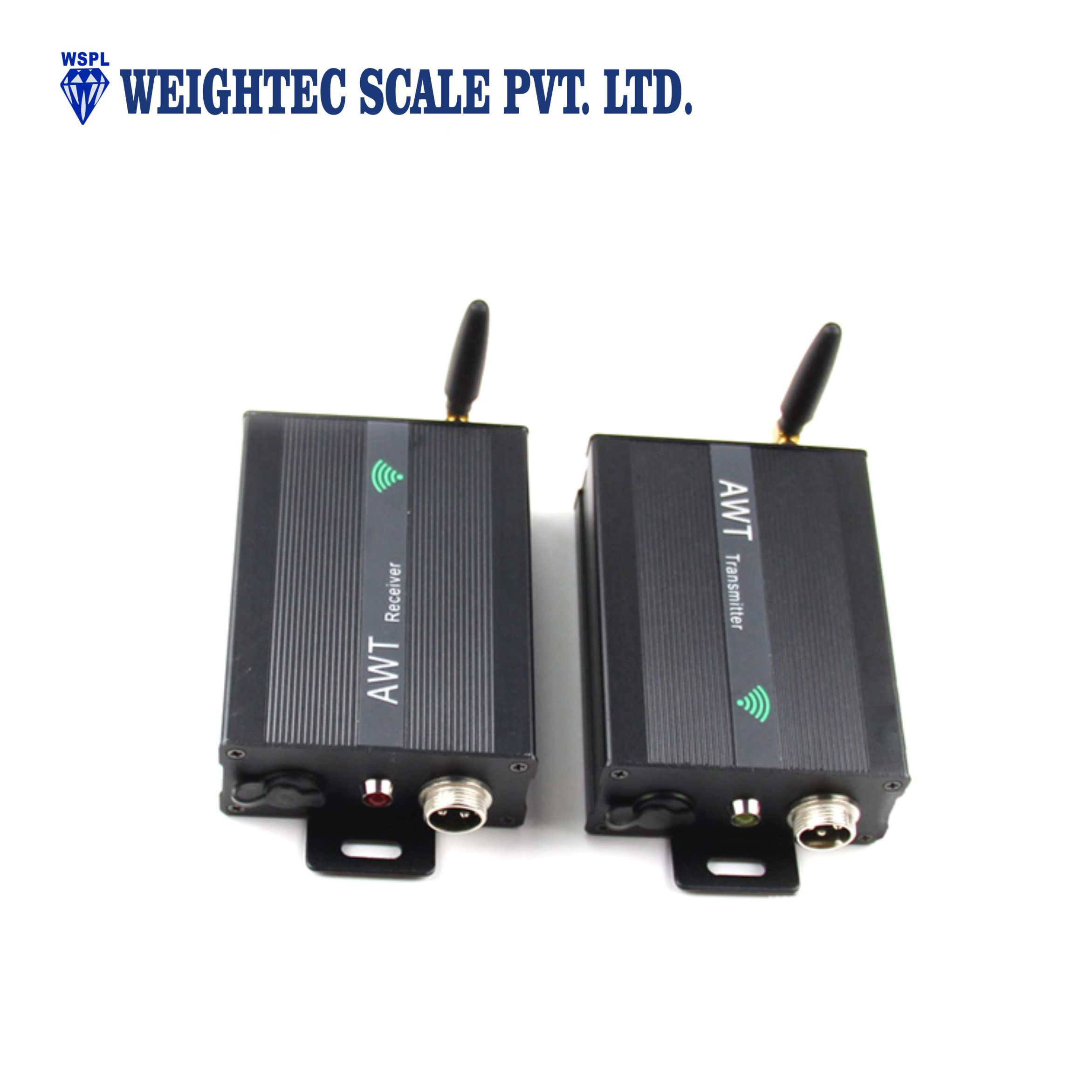

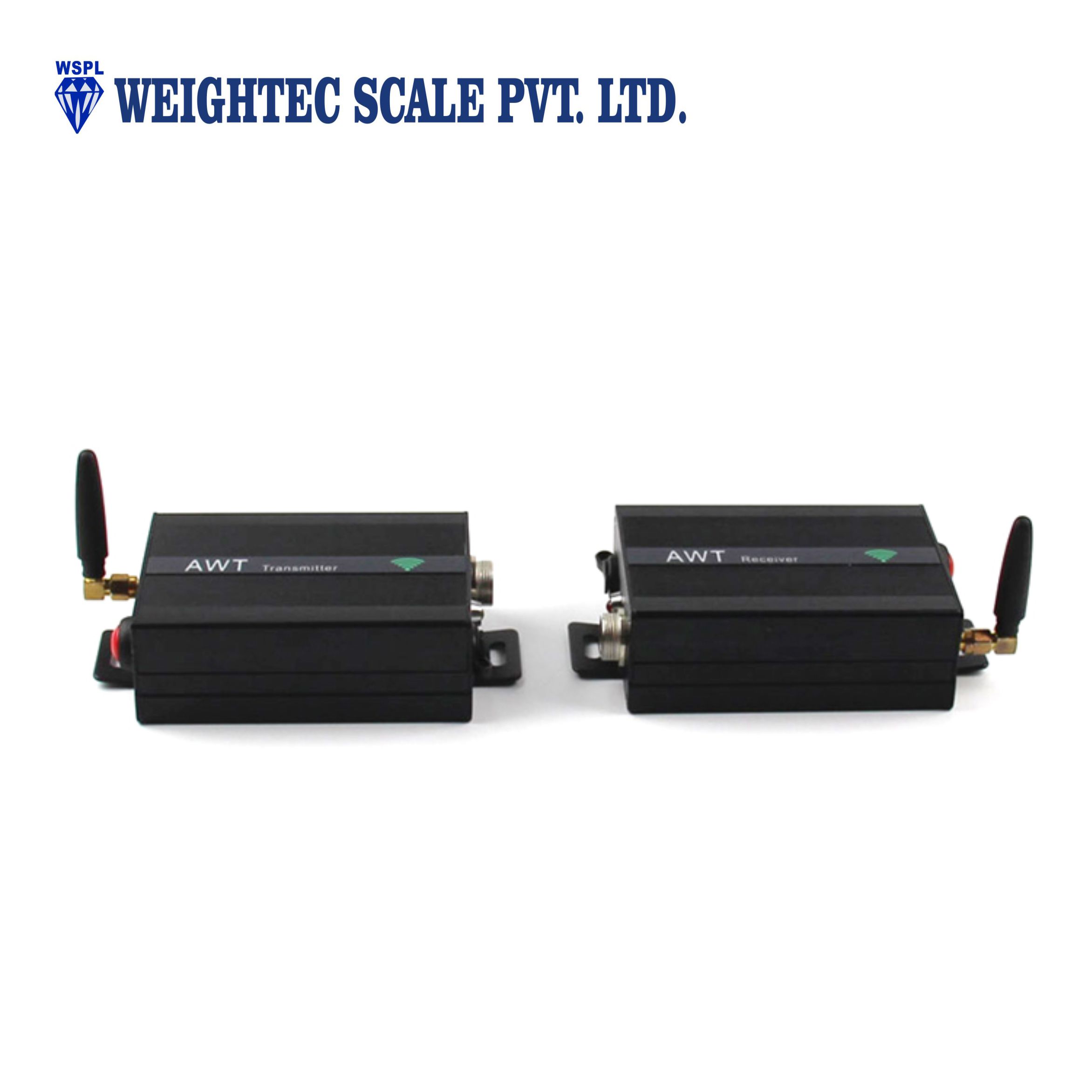

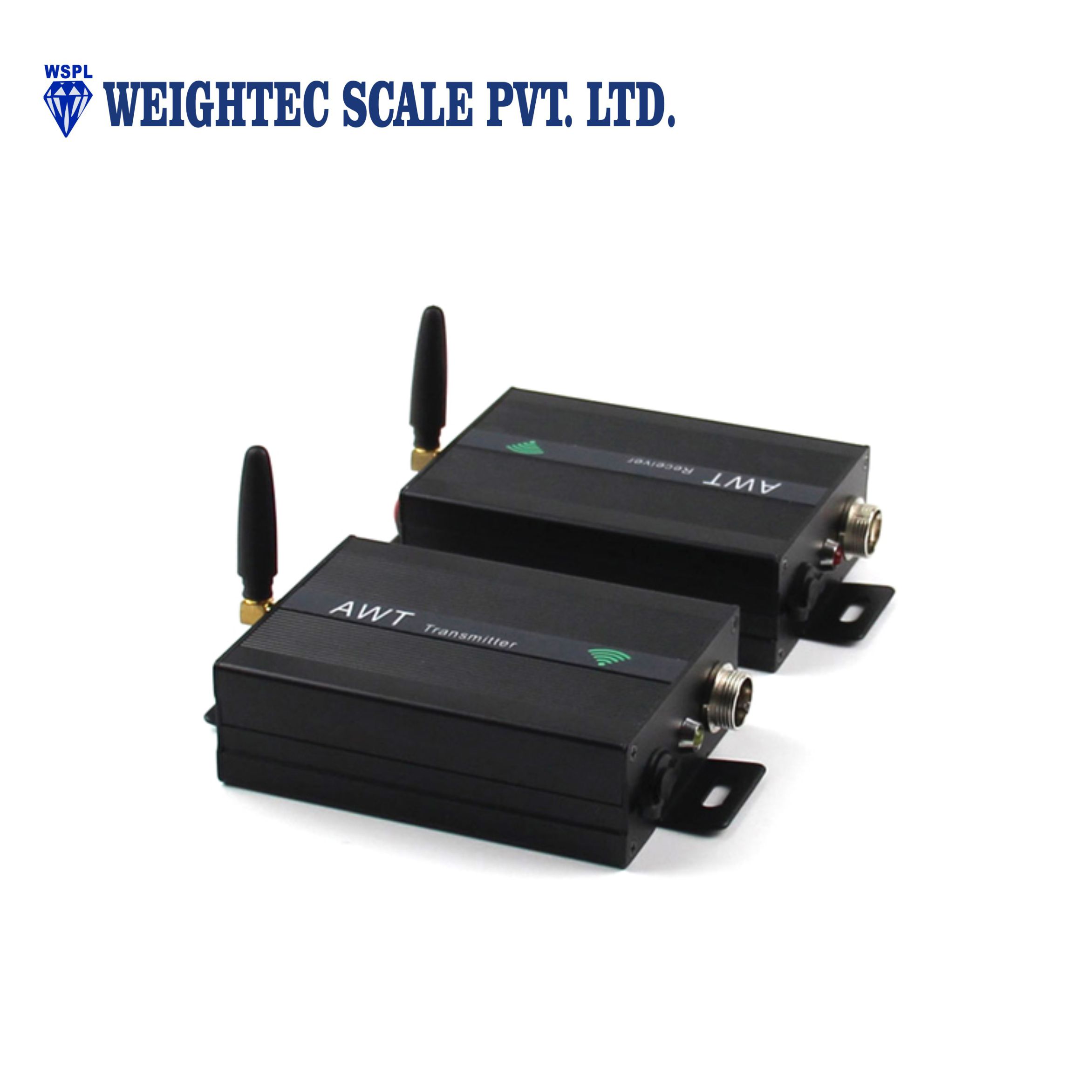

Instruction
1. Analog signal transmission with wireless
2. Communication range: >200 meters (Open space)
3. Input signal from load cell: -19.5mV~ +19.5mV
4. Output signal to Indicator: 0 ~ 25mV
For AWT sender:
|
Accuracy
|
1/100,000 for load cell
|
|
Input signal range
|
-19.5mV ~ +19.5mV
|
|
Connect Load cell
|
1 to 12 load cell
|
|
Load cell excitation
|
DC5V
|
|
Load cell connection mode
|
4 wire
|
|
Wireless Frequency
|
433MHZ~470MHZ
|
|
Power supply
|
Rechargeable battery 7.4V / 2400mAh
or 8.4V / 1A charger
|
|

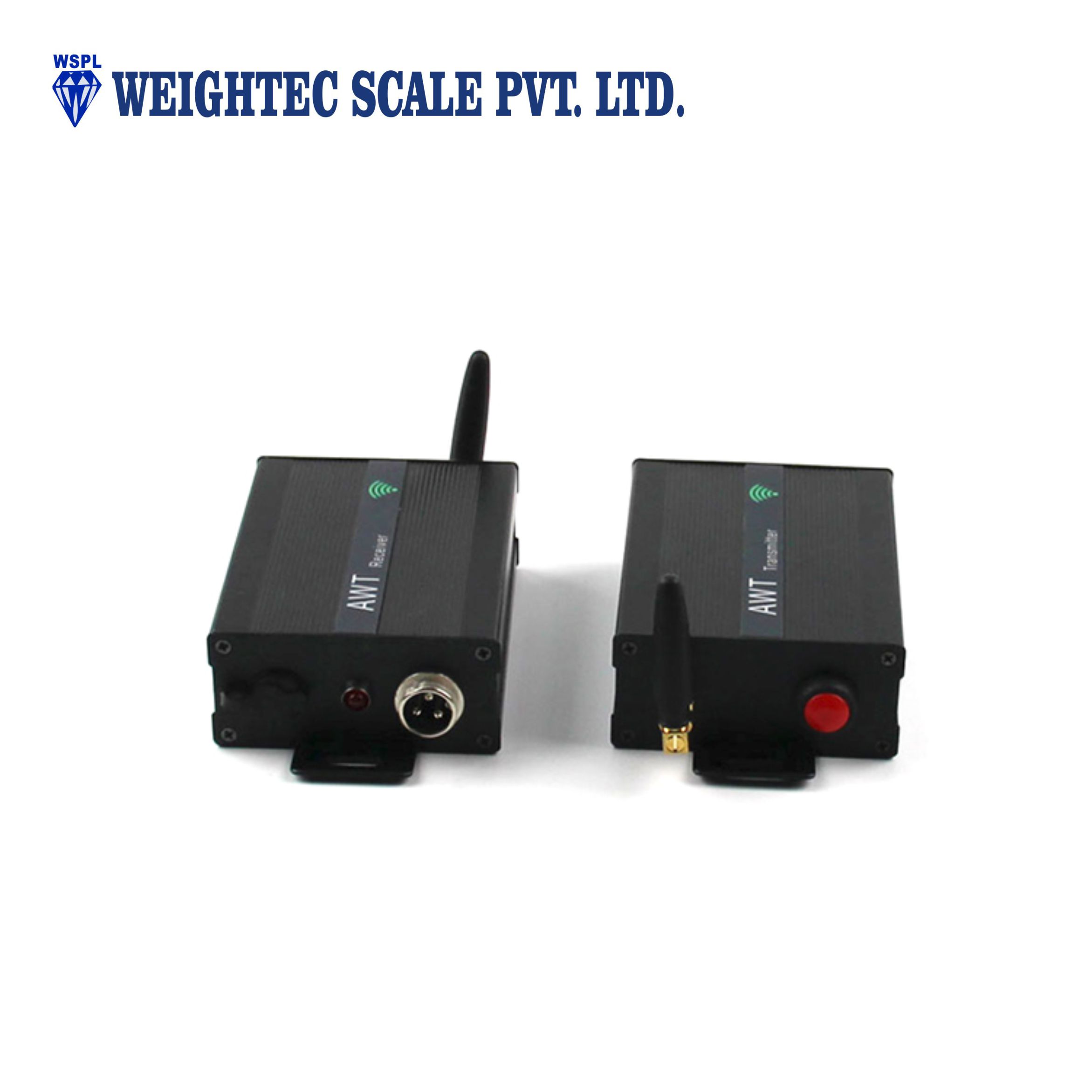

Switch
|
Red waterproof button,long press for turn on or shut down
|
|
Antenna
|
Elbow antenna, can swing up and down
|
|
Led light
|
It will twinkle when working
|
|

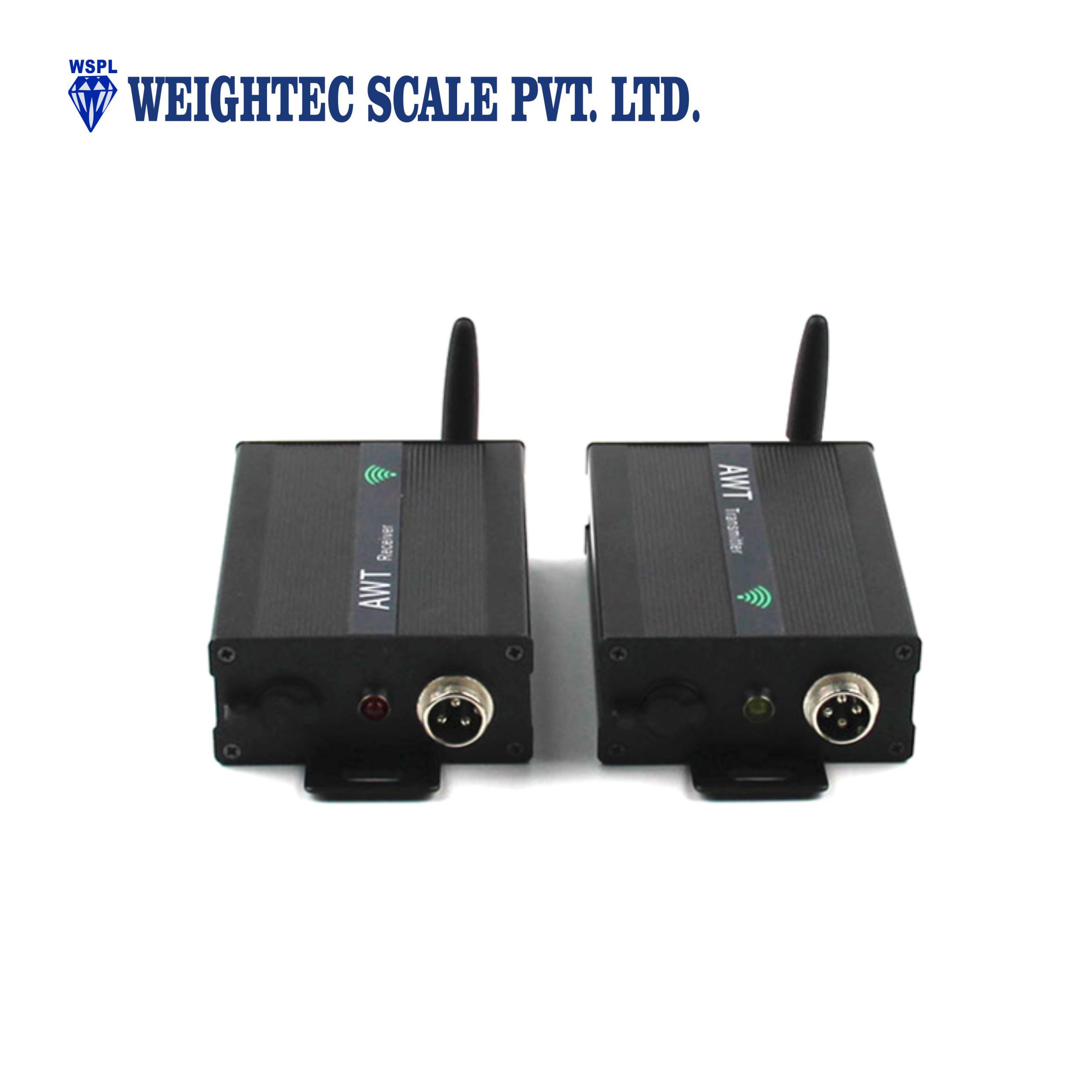

Connect Interface
|
4PIN plug connect to load cell,
PIN1：E- (Excitation-)
PIN2：S+ (Signal+)
PIN3：S- ( Signal -)
PIN4：E+ (Excitation
+)
|
|
Working temperature
|
-10℃ to +60 ℃
|
|
Dimension(mm)
|
Aluminum 135 x 75 x 35 (black or yellow)
|
For AWT receiver:
|
Accuracy
|
1/10,000 for Indicator
|
|
Output analog signal
|
0mV ~ 25mV
|
|
Connect indicator
|
Analog indicator
|
|
indicator connection mode
|
4 wire (E-,S+,S-,E+)
|
|
Wireless Frequency
|
433MHZ~470MHZ
|
|
Power supply
|
Rechargeable battery 7.4V / 2400mAh
or 8.4V / 1A charger
|
|
Switch
|
Red waterproof button,long press for turn on or shut down
|
|
Antenna
|
Elbow antenna, can swing up and down
|
|
Led light
|
It will twinkle when working
|
|
Connect Interface
|
5PIN plug connect to indicator,
PIN1：E- (Excitation-)
PIN2：S+ (Signal+)
PIN3：S- ( Signal -)
PIN4：E+ (Excitation +)
PIN5：NC
|
|
Working temperature
|
-10℃ to +60 ℃
|
|
Dimension(mm)
|
Aluminum 135 x 75 x 35 (black or yellow)
|
|
