HY18-SS

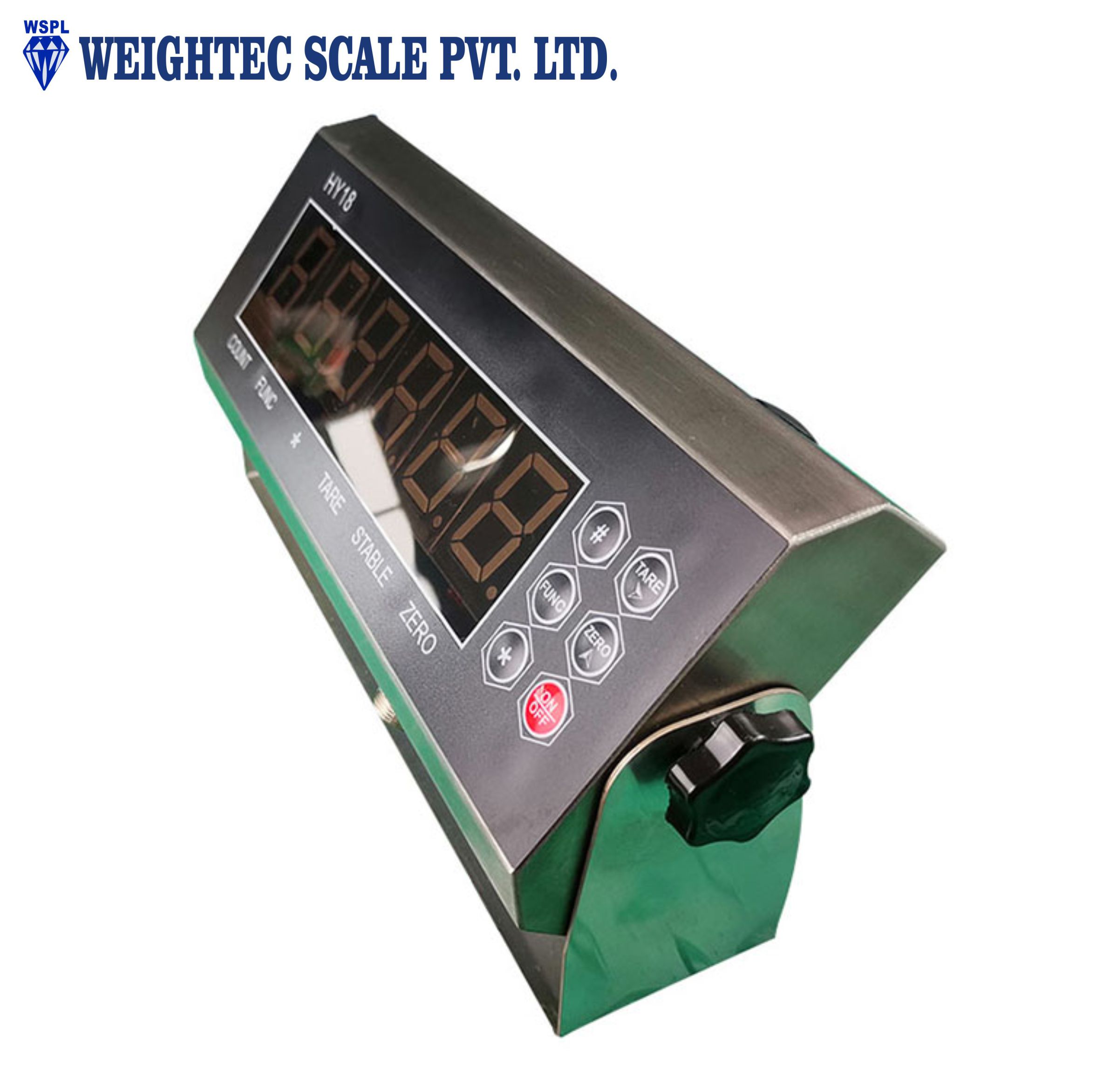

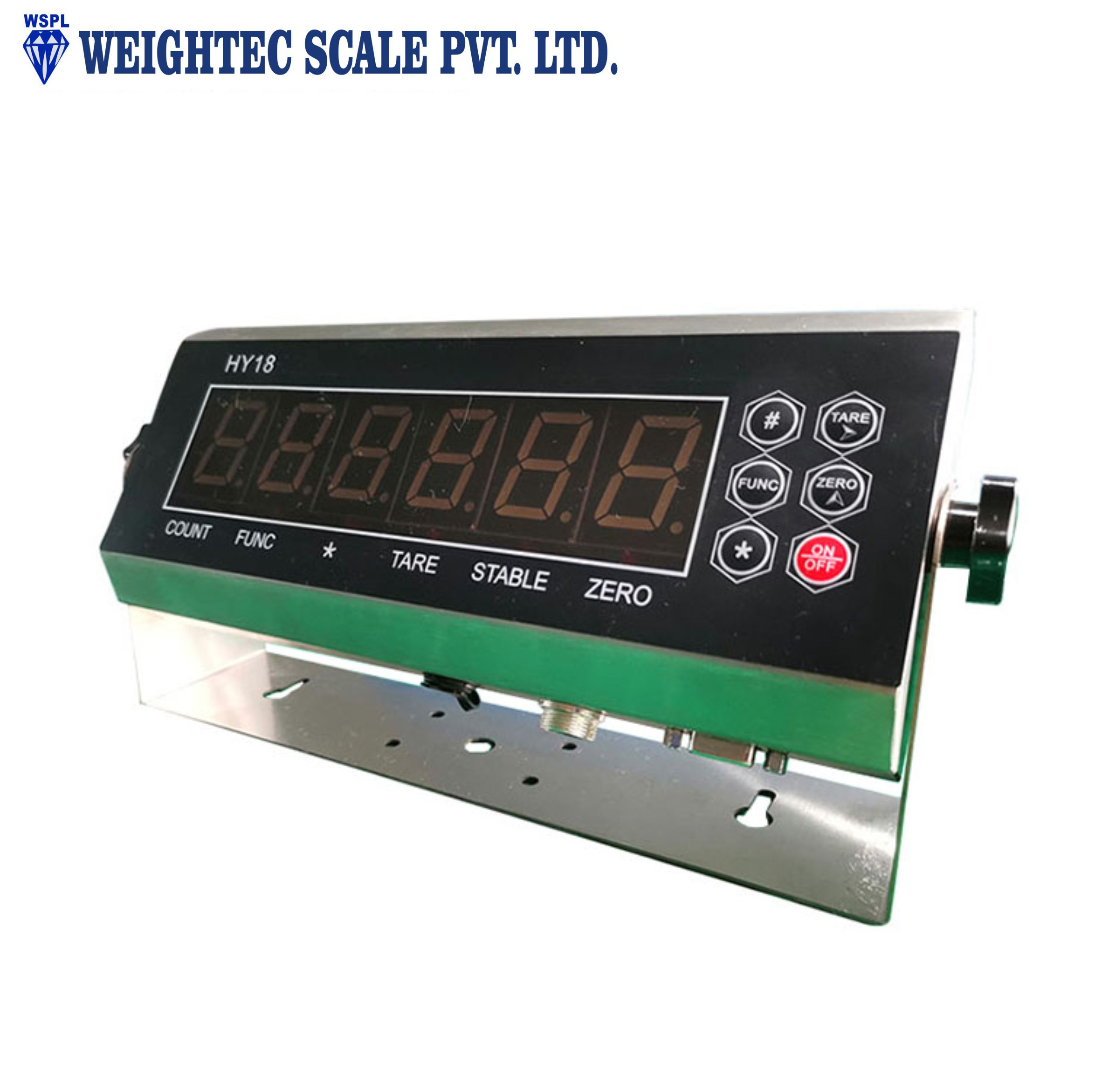

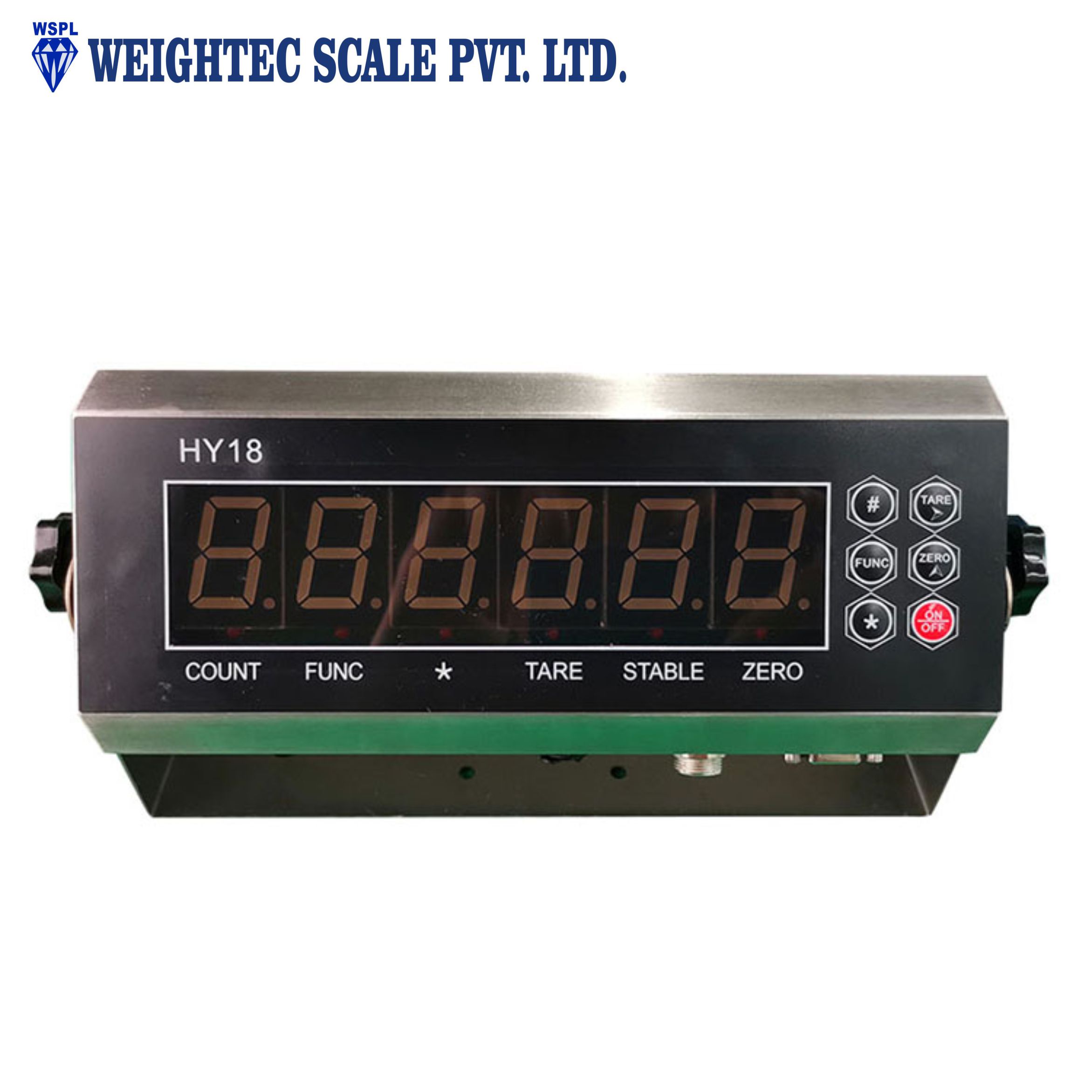

1. Model:                                            HY18-SS weighing indicator

2. Accuracy:                                       GradeⅢ, n=3000

3. Sample Rate:                                 80 times / second

4. Load cell sensitivity:                       1.5~3mV / V

5.Scale interval:                                  1/2/5/10/20/50 for option

6. Display:                                          6 bits 1.2” LED,6 state indicating signals

7. Scoreboard interface:                      In serial output mode:RS232,transmission distance≤30m,

8. Communication interface:                RS232C;Baud rate 1200/2400/4800/9600 optional;

RS485/Wireless Optional;

9. Power supply:                                  DC6~12V

AC110V~240V /50HZ

10. Operating temperature/humidity:   -10~50℃;≤90%RH

11. Transporting temperature:              -20~50℃

12. Dimension:                                   255*100*40mm

Related Products Product name Picture Power supply RS232 port Micro Printer Dimension HY12 DC6V/4AH AC220V/50HZ Yes Optional 248*158*160mm HY16 iron DC6V/4AH AC80V~300V Optional No 252*157*100mm HY18 iron DC6~12V AC100V~240V Optional No 255*100*40mm HY-A9 DC6V/4AH AC220V/50HZ Yes Optional 320*234*177mm HY-D201 AC100V~240V Yes No 200*120*66mm HY-D202 AC100V~240V Yes No 96*96*100mm HY-BSW 1.2"/3"/5"/8" AC220V/50HZ Optional No 1" : 255*100mm 3" : 540*180mm       word height:75mm 5" : 780*260mm       word height:125mm 8" : 1000*500mm     word height:200mm
