Dynamometer/Wireless

  • HYCS-DY1W & HY280
HYCS-DY1W & HY280

HYCS-DY1W & HY280

  • 1~100t
  • Optional wireless large screen
  • Product description:
  • INQUIRY

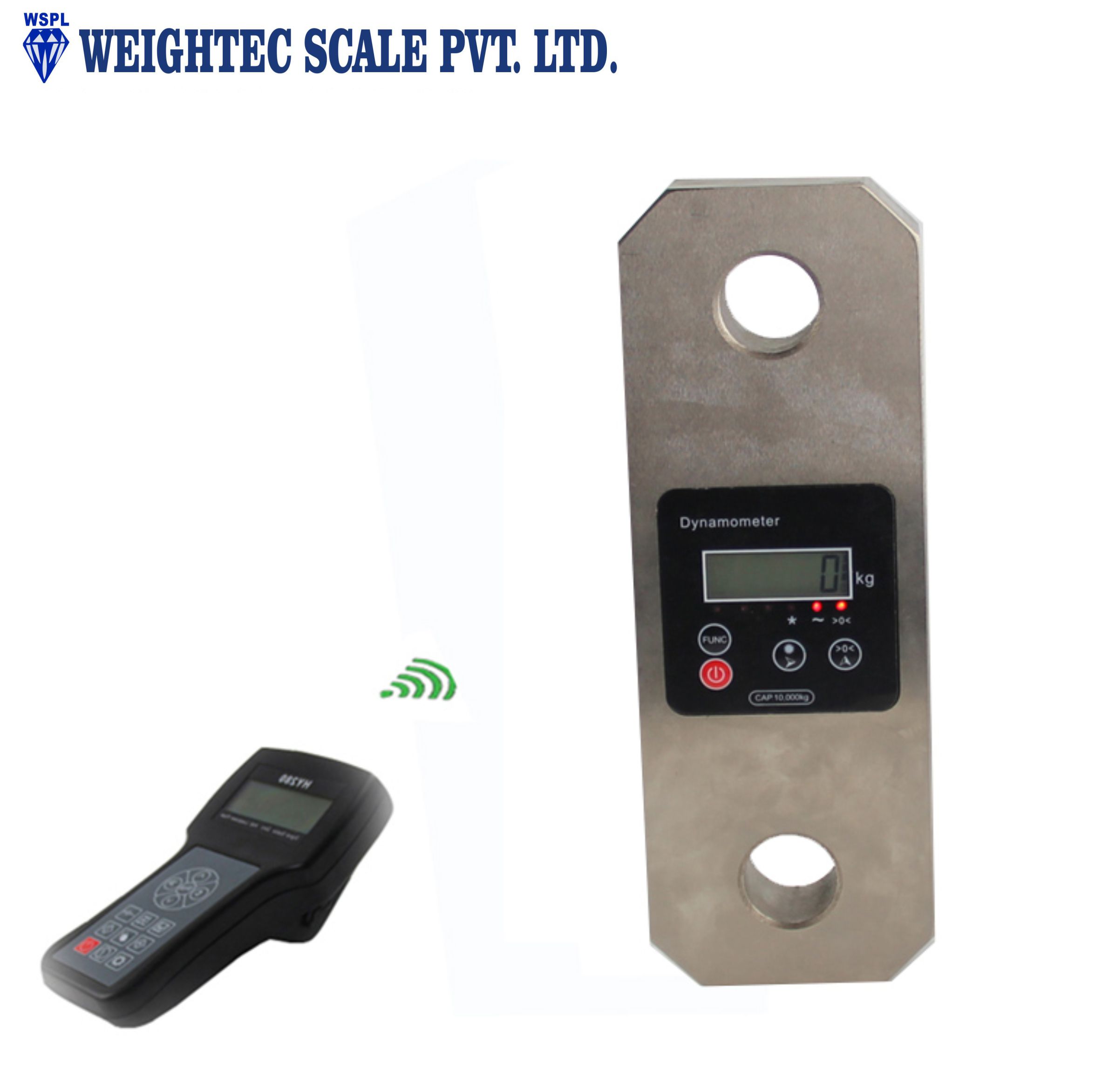

chassis tension dynamometer with waterproof panel
Product Description
1. Accuracy:                                                  GradeⅢ, n=3000
2. Sample Rate:                                           80 times/second
3. Scale interval:                                         1/2/5/10/20/50 for option
4. Display:                                                  6 bits LCD,6 state indicating signals
5. Communication interface:                      Wireless signal
6. Power supply:                                         Battery AA 1.5V*3
7. Operating temperature/humidity:            -10~45℃;≤90%RH
8. transporting temperature:                       -20~50℃
Model
Max. Cap.(Kg)
Min. Weigh(Kg)
Division(Kg)
Total Display Counts (N)
HYCS-DY1-01
1000
10
0.5
2000
HYCS-DY1-02
2000
20
1
2000
HYCS-DY1-03
3000
20
1
3000
HYCS-DY1-05
5000
40
2
3000
HYCS-DY1-10
10000
100
5
2000
HYCS-DY1-15
15000
100
5
3000
HYCS-DY1-20
20000
200
10
2000
HYCS-DY1-30
30000
200
10
3000
HYCS-DY1-50
50000
400
20
2500
HYCS-DY1-100
100000
1000
50
2000
HYCS-DY1-200
200000
2000
100
2000

DIMENSIONS(Dimensions shown are nominal and subject to tolerances)
Model
Cap.
Div
A
B
C
D
φ
H
Material
(mm)
HYCS-DY1-01
1t
0.5kg
245
95
48
190
43
335
Aluminum
HYCS-DY1-02
2t
1kg
245
95
48
190
43
335
Aluminum
HYCS-DY1-03
3t
1kg
245
95
48
190
51
365
Aluminum
HYCS-DY1-05
5t
2kg
285
101
48
210
58
405
Aluminum
HYCS-DY1-10
10t
5kg
320
114
48
230
92
535
Alloy
HYCS-DY1-20
20t
10kg
420
125
7 0
260
127
660
Alloy
HYCS-DY1-30
30
10kg
420
138
8 0
280
146
740
Alloy
HYCS-DY1-50
50t
20kg
465
150
10 0
305
184
930
Alloy
HYCS-DY1-100
100t
50kg
570
190
1 4 2
366
229
1230
Alloy
