| Place of Origin | Ningbo,China(Mainland) |
| Brand Name | YEAHEVER |
| Model Number | HY13 |

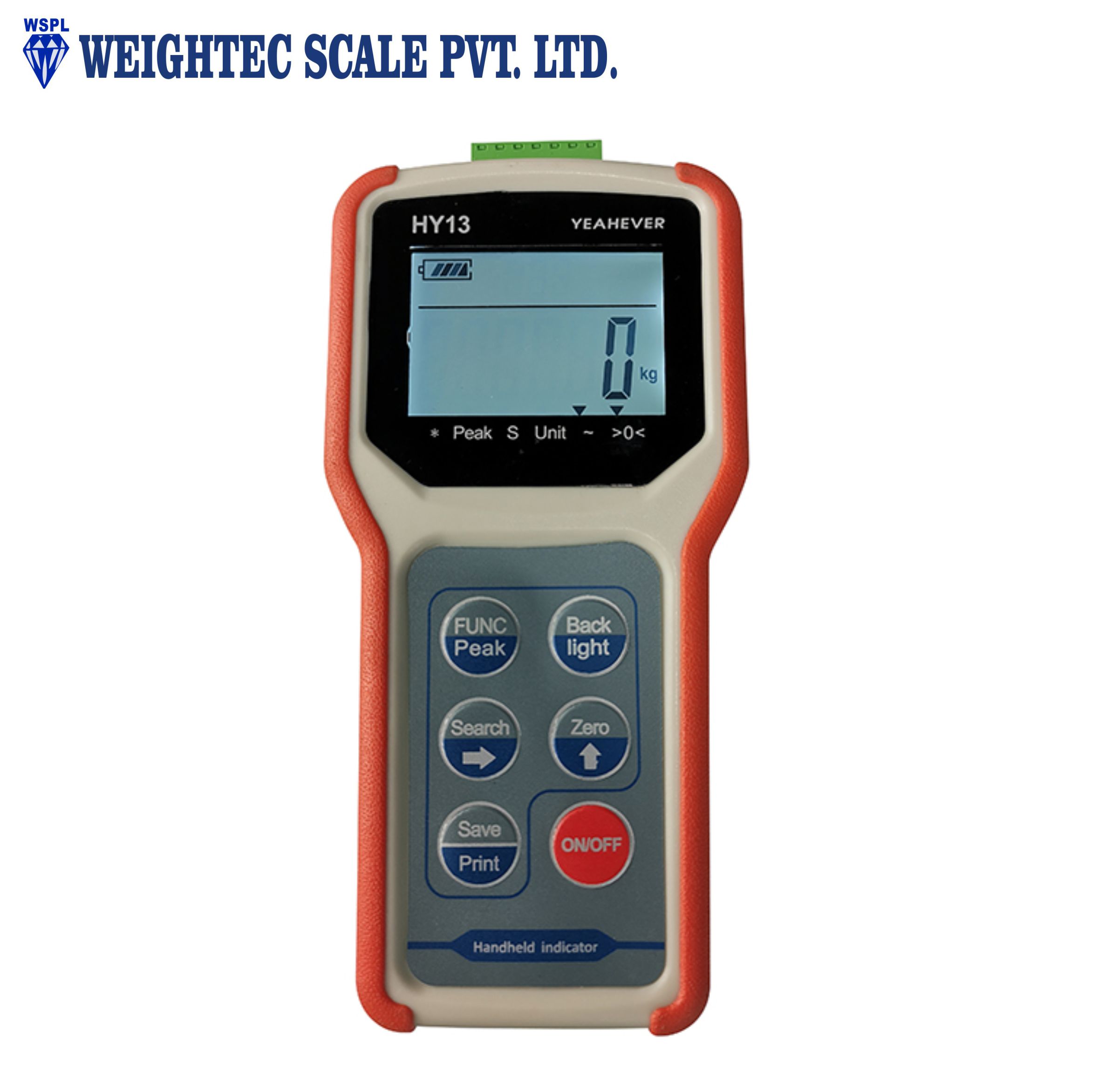

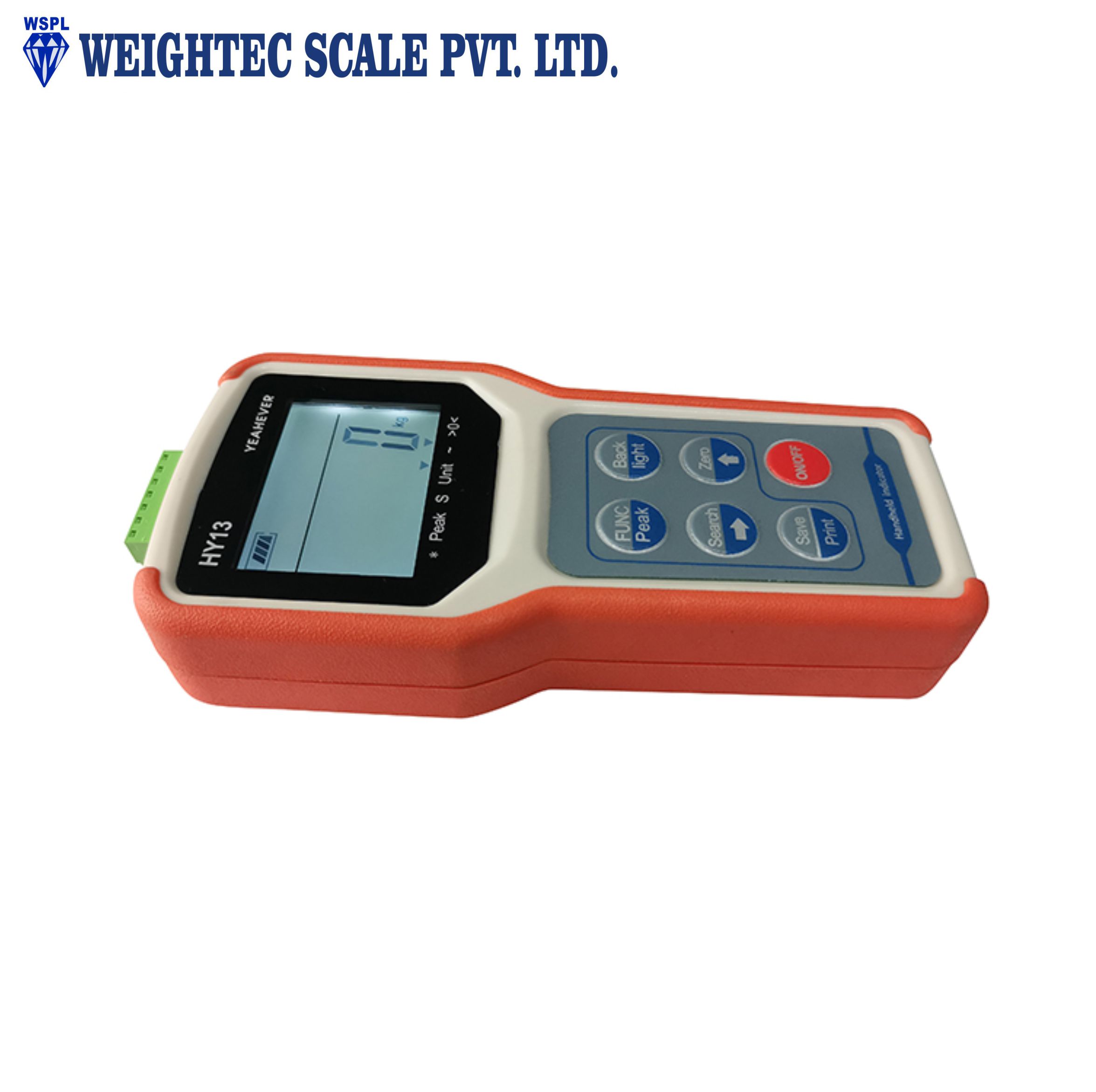

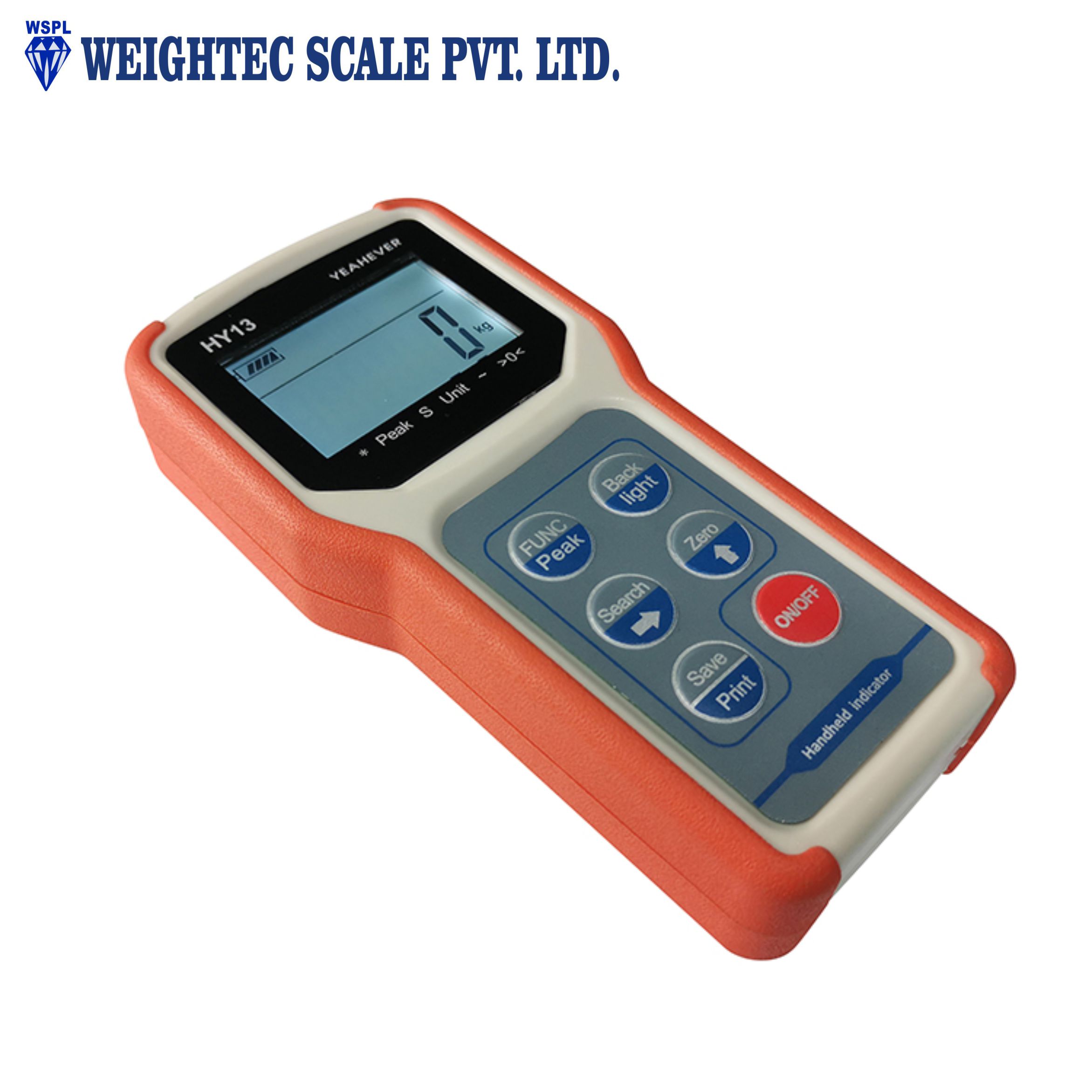

| Type | weighing indicator |
| Accuracy | 24 bit AD |
| Sample rate | 10 tims/s , 40 times/s or 80 times/s |
| Load cell sensitivity | 1~3mV/V |
| Display | LCD |
| Display color |
black character on a white background |
| Division | 1/2/5/10/20/50/100 optional |
| Weighing Units | kg/lb/kN/g/t/viss |
| External Interface | RS232 interface |
| Dimension(mm) | 165*80*30mm |
| Power Supply | AAA 1.5V*4 |
| Printer | Optional wired printer |
| Operating temperature | -25°C~50°C, RH 10%~85%, Non-condensing |
| Storage temperature | -30°C~55°C, RH 10%~85%,Non-condensing |
|

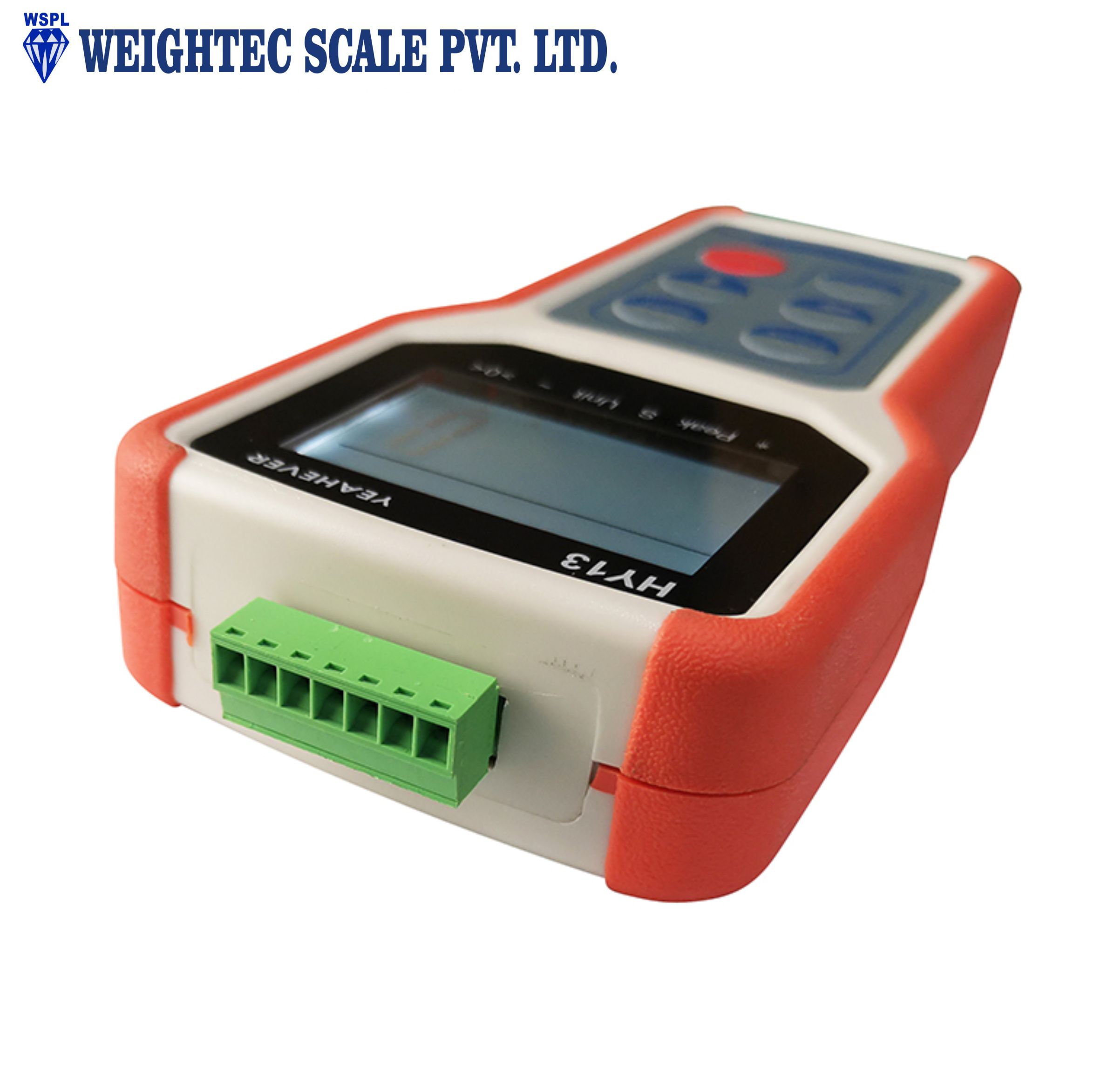

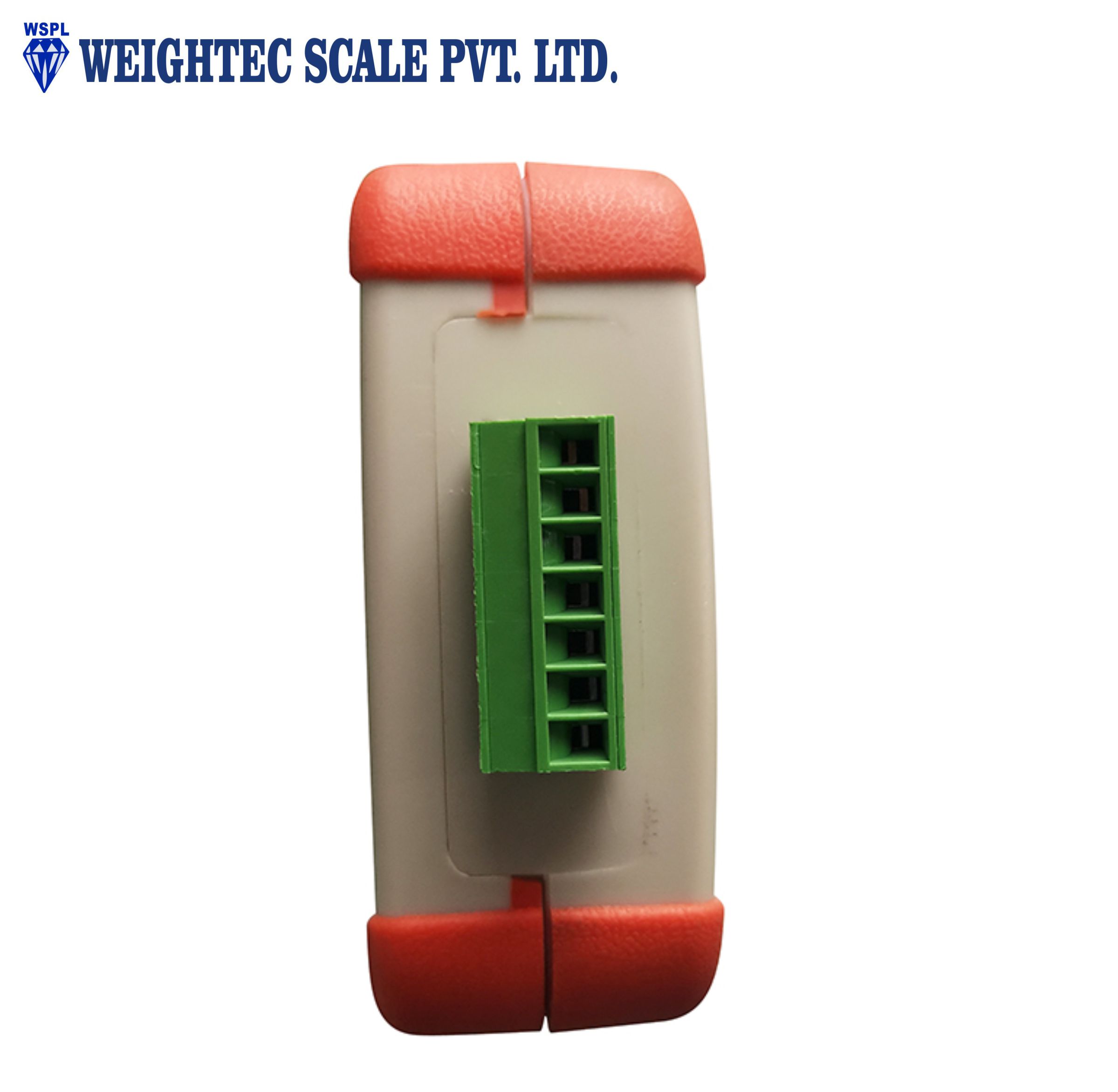

Interface: pin1: E- PIN2: S- PIN3: S+ PIN4: E+ PIN5: RXD PIN6: TXD PIN7:GND |
