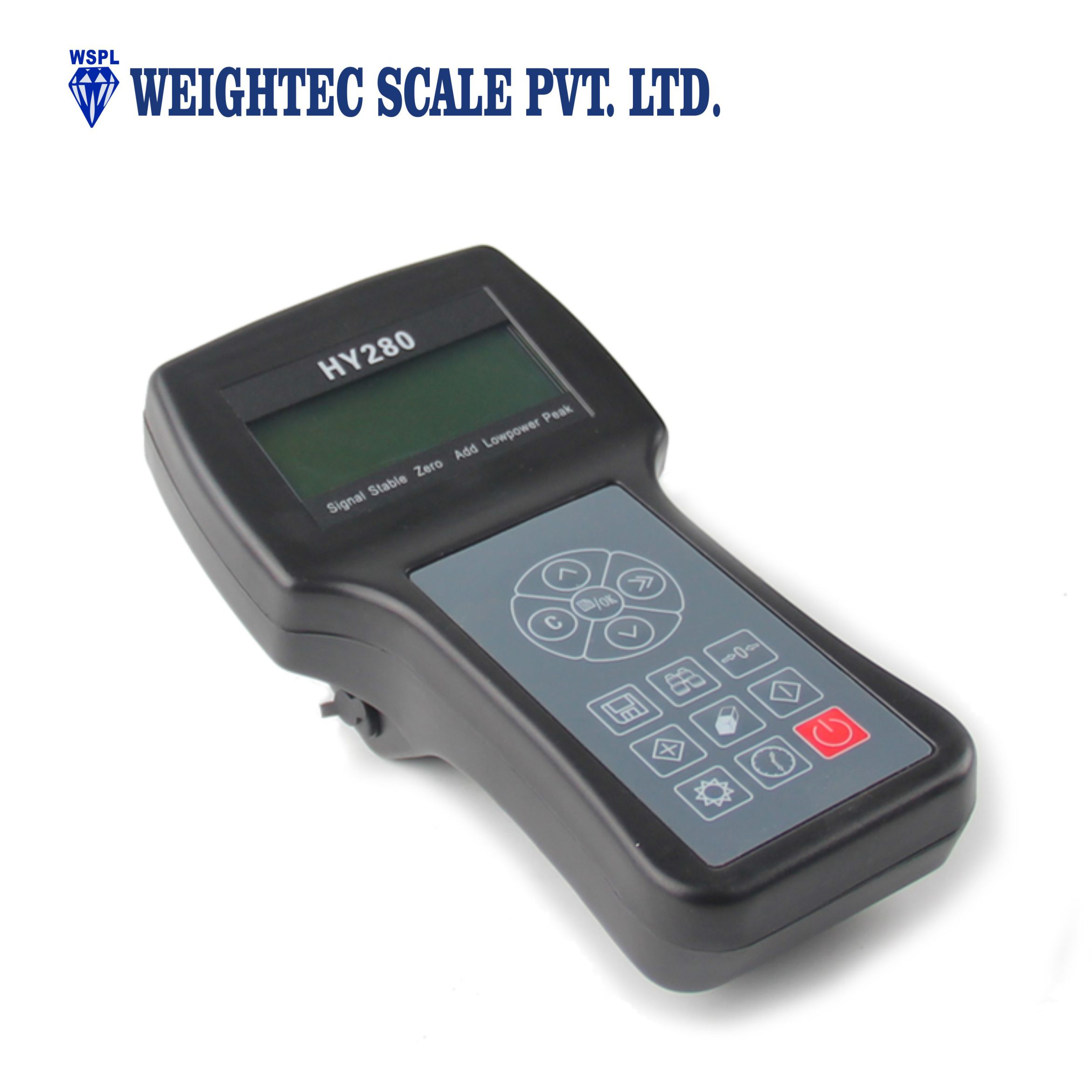

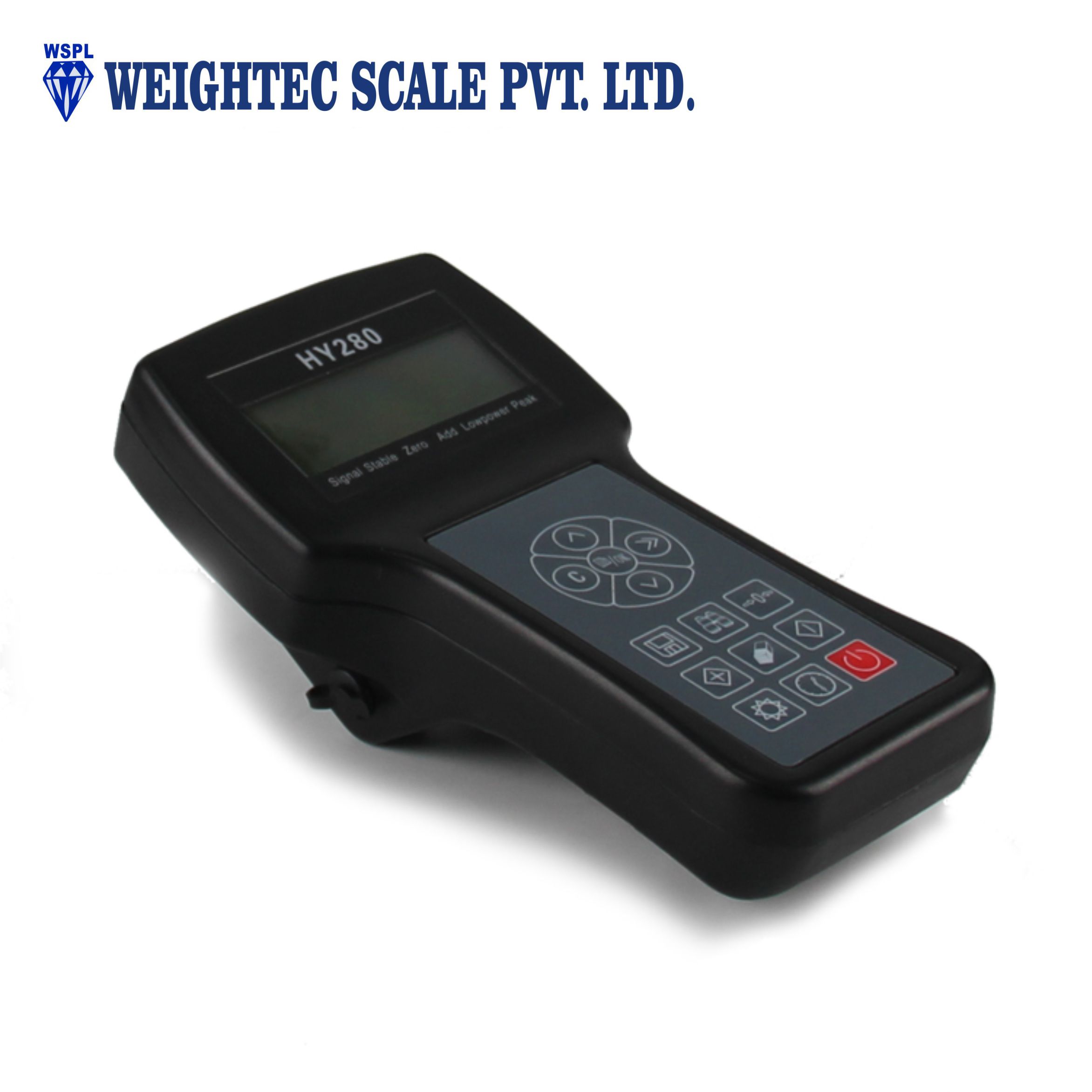

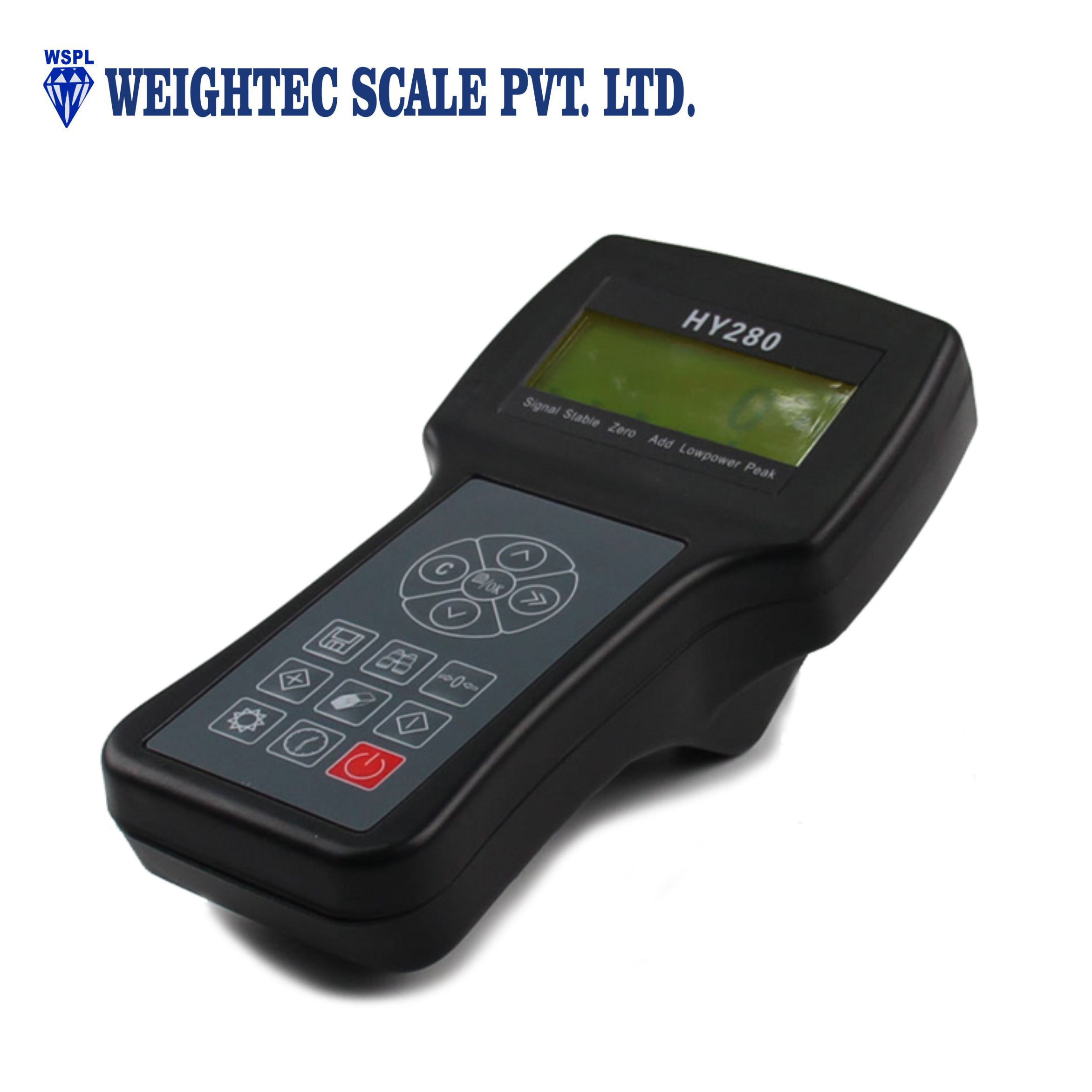

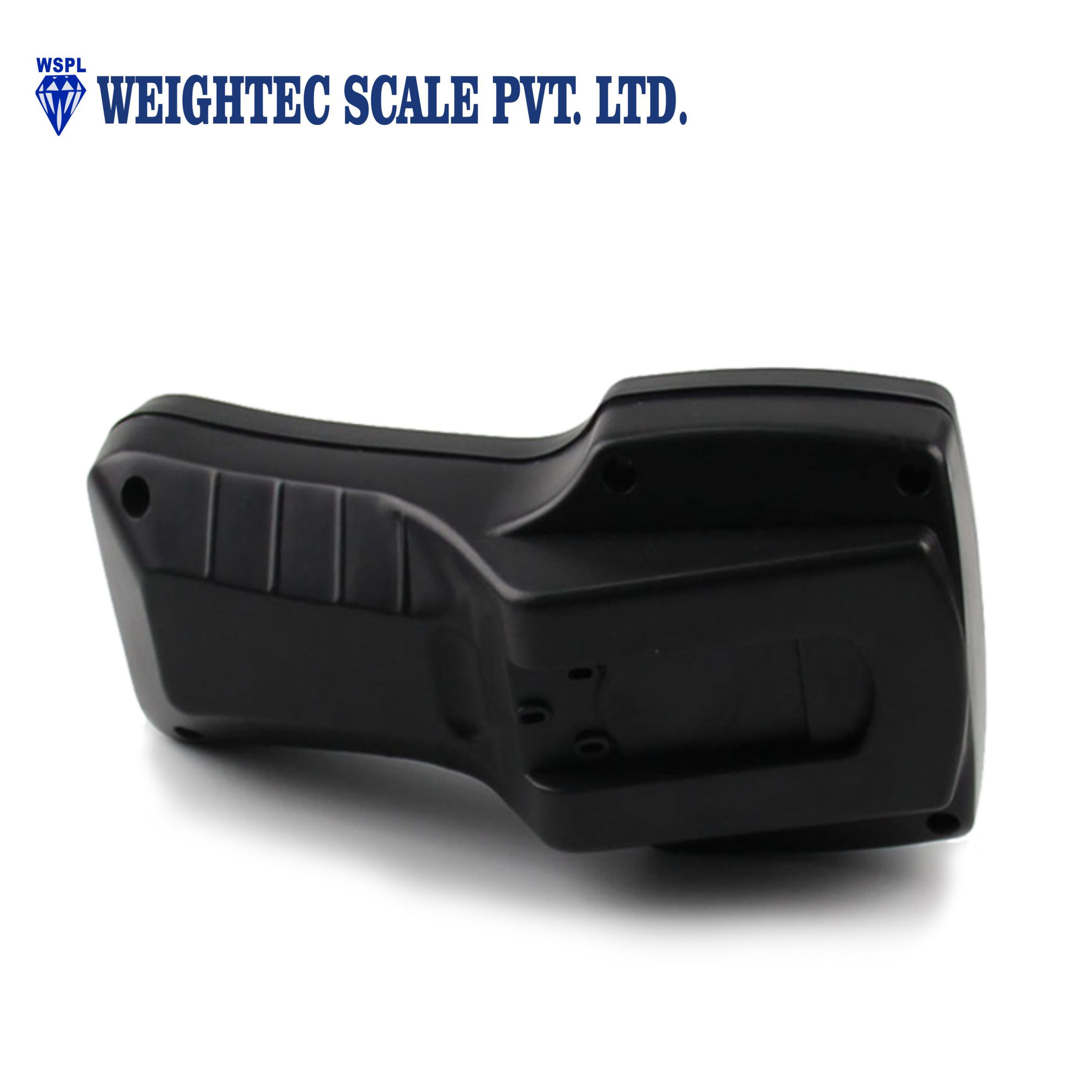

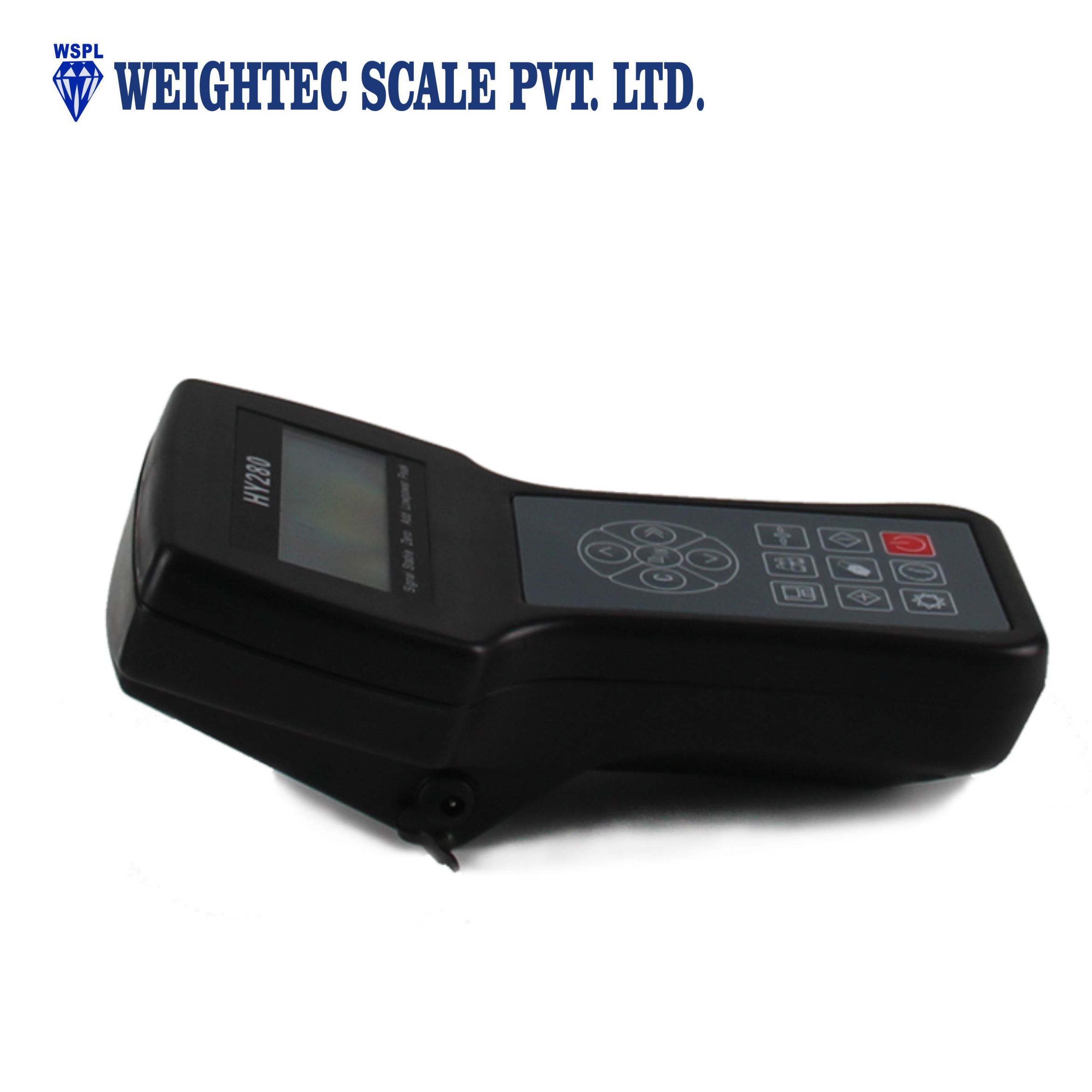

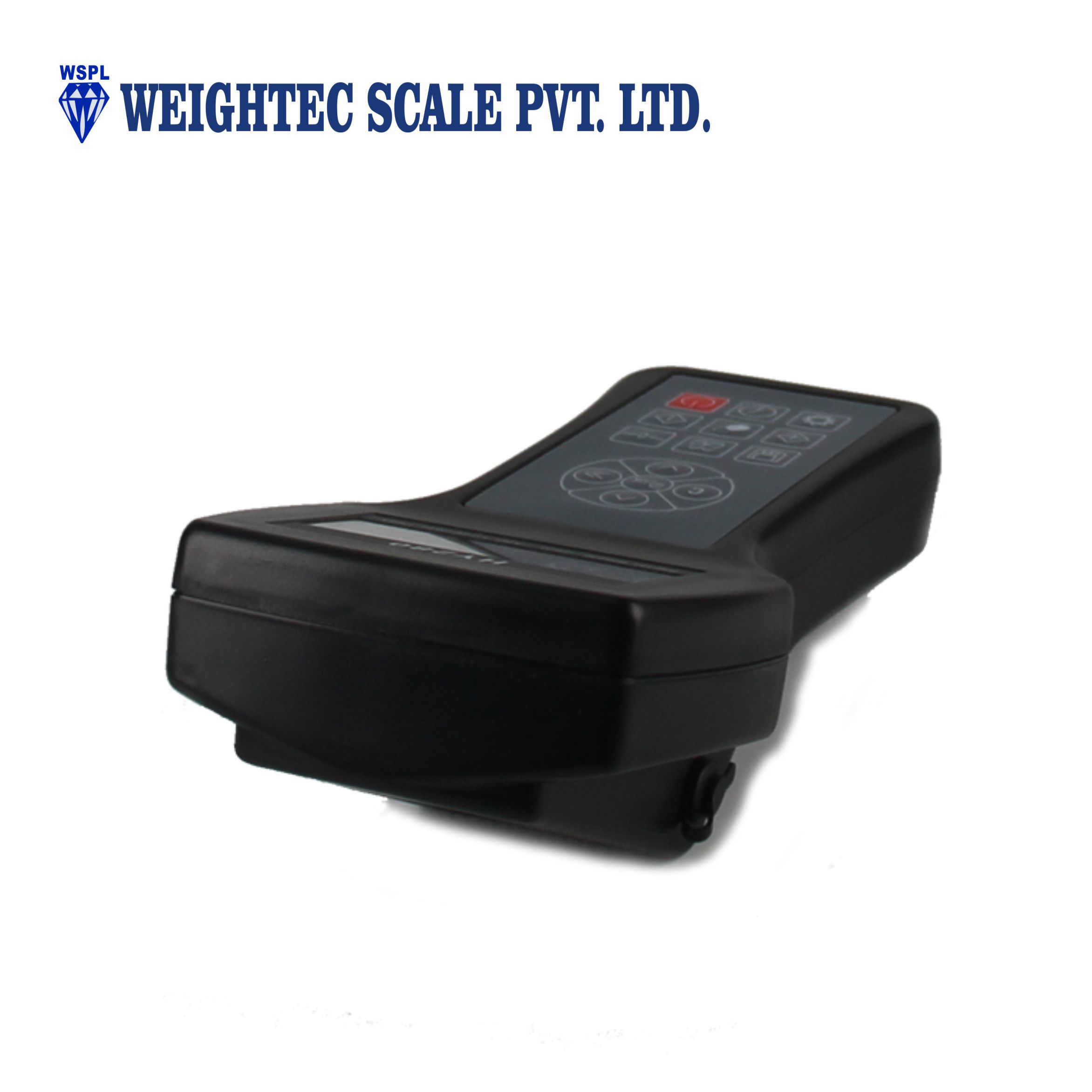

Wireless handheld indicator

HY280

Wireless handheld indicator
Product description:
INQUIRY

◆ handheld wireless indicator ;
◆ 192 * 64 dot matrix LCD screen , backlit display, clearly visible during the day and night ;
◆ weighing results can be saved into up to 99 categories；
◆ Selectable kg , t , lb or kN
◆ accurate internal clock and calendar
◆ automatically shut down the power scale after half an hour while no body operate.
◆ Bidirectional data transfer functions.

◆ Dimension:230*120*100mm

Product Description

Handhold weighing indicaot
1.192 * 64 dot LCD screen ,backlight;
2.Many key operation,ABS plastic housing.

For indicator	Display	192 * 64 dot matrix LCD screen
	Weighing Units	kg/t/lb/kN…
	Division	1/2/5/10/20/50/100 optional
	Dimension(mm)	230120100mm
	Power supply	Rechargeable battery 7.4V / 2500mA or 8.4V / 1A charger
	External Interface	Optional
	Printer	No
	Operating temperature	-25°C~50°C, RH 10%~85%, Non-condensing
	Storage temperature	-30°C~55°C, RH 10%~85%,Non-condensing
	Communication	Wireless interface,434M~470MHZ
For wireless sender	A/D conversion method	Σ-Δ 24bit
	Input signal range	–19.5mV~19.5mV
	Load cell excitation	DC 5V
	Max. connection number of load cell	1~12
	Load cell connection mode	4 wire
	Operating temperature	-10 °C ~40 °C
	Allowable working temperature	-40 ° C ~ 70 ° C
	Wireless transmission frequency	430MHz to 470MHz
	Wireless transmission distance	300 meters (in wide place)
