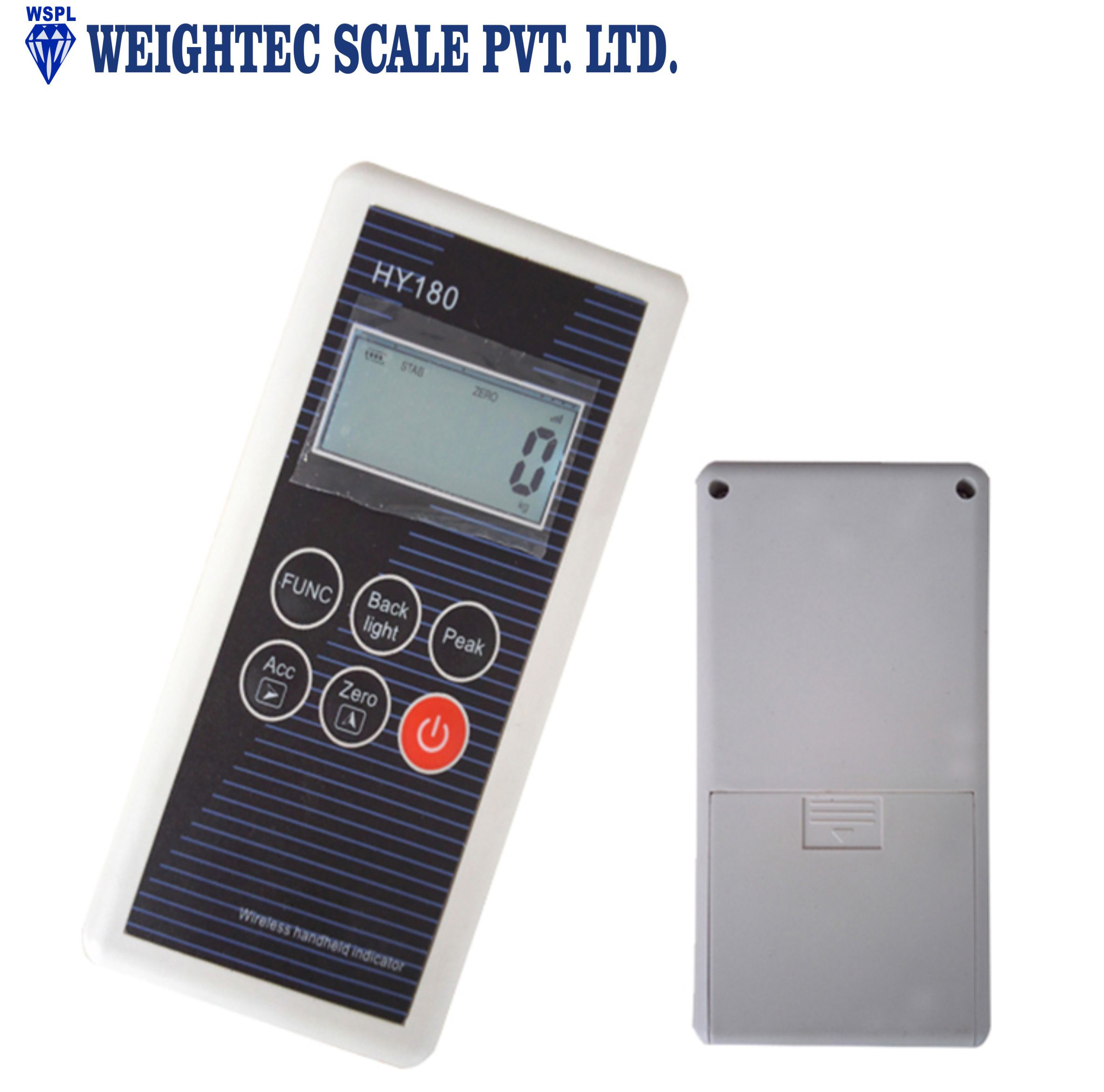

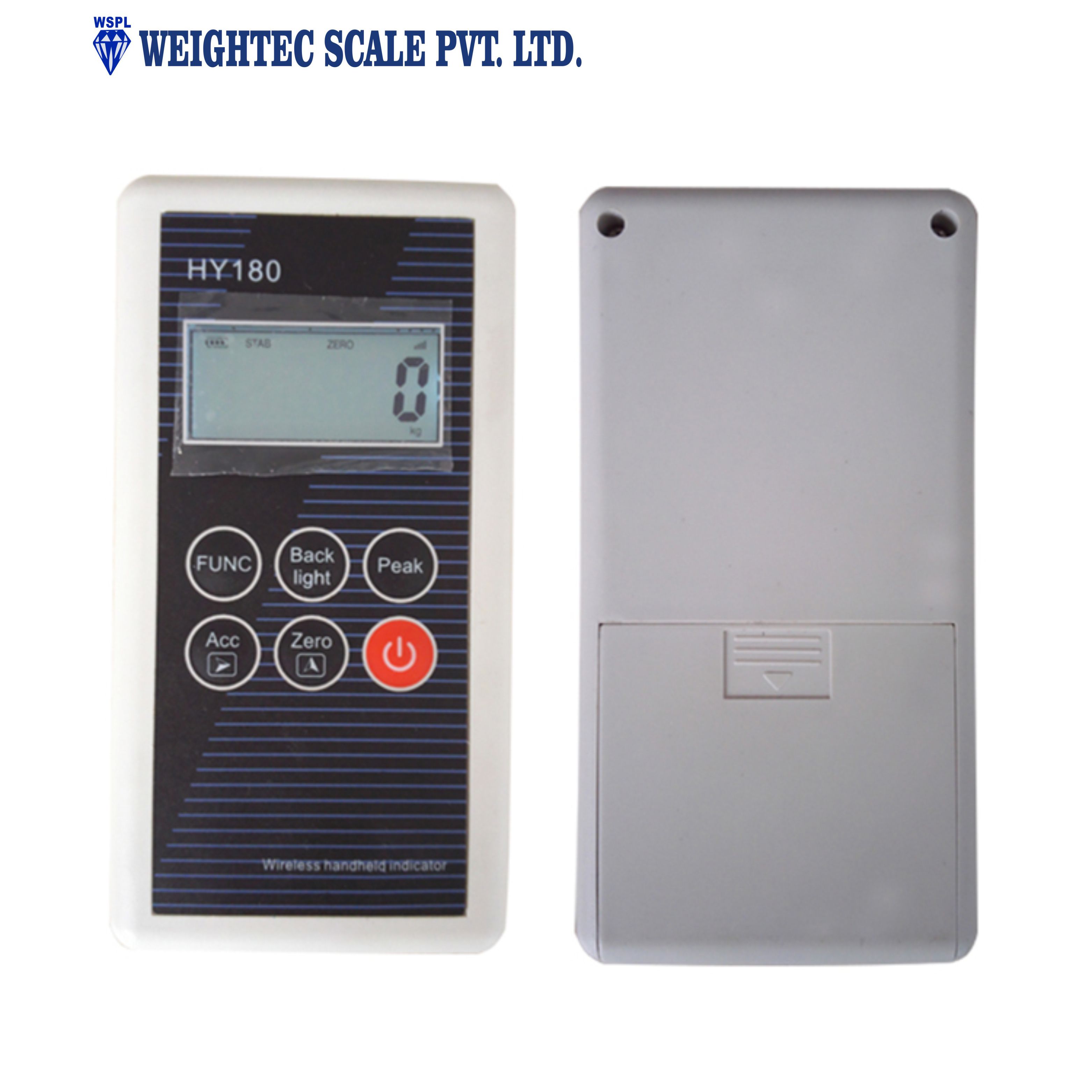

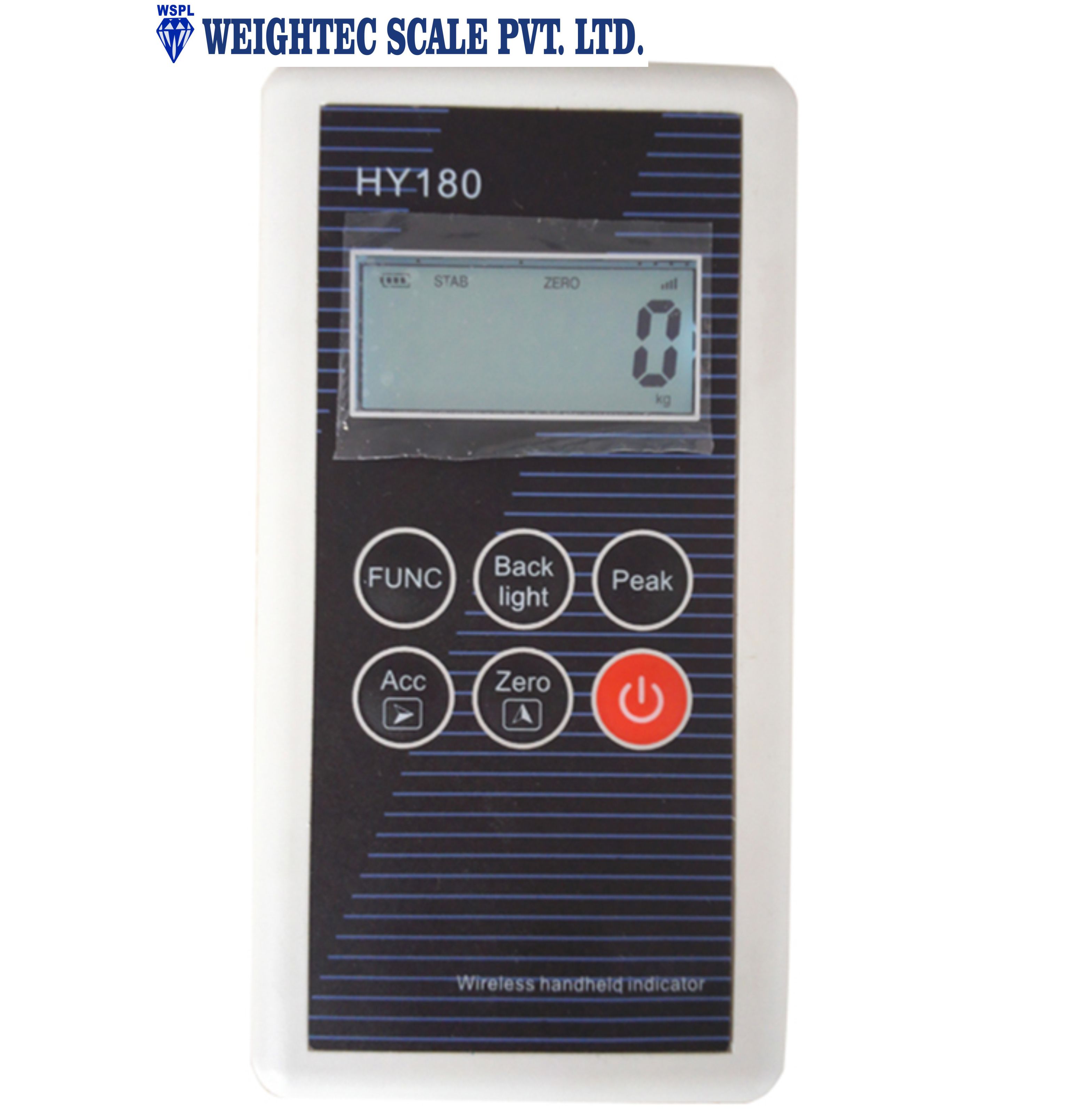

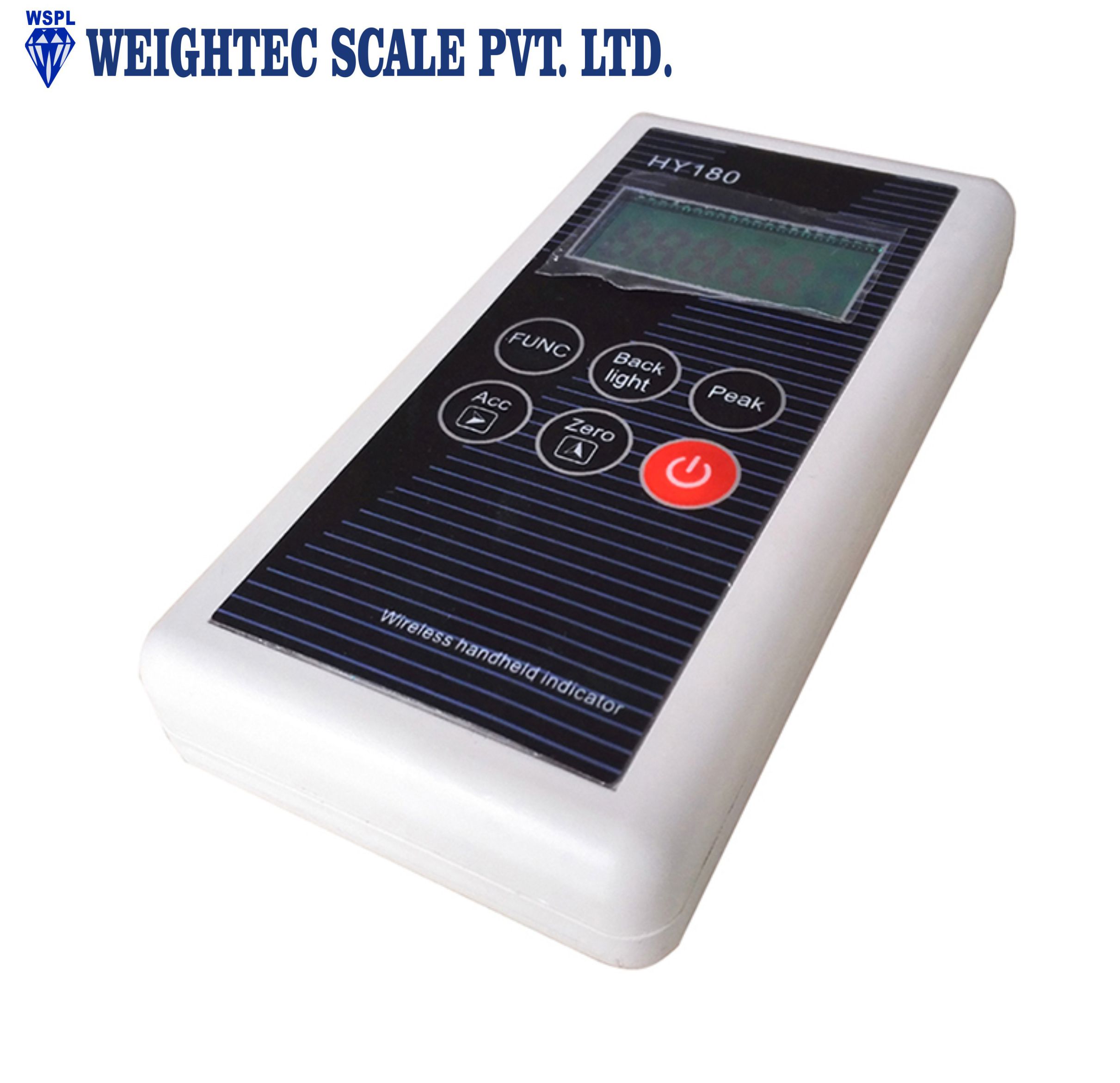

Wireless handheld indicator

HY180

Wireless handheld indicator
MINI wireless indicator
Product description:
INQUIRY

◆ handheld wireless instrument ;
◆ 6 bit LCD screen , backlit display, clearly visible during the day and night ;
◆ choose to print text in English
◆ Selectable kg , lb
◆ accurate internal clock and calendar
◆ automatically shut down the power scale after half an hour while no body operate.
◆ Bidirectional data transfer functions.

◆ Dimension:135*70*24mm

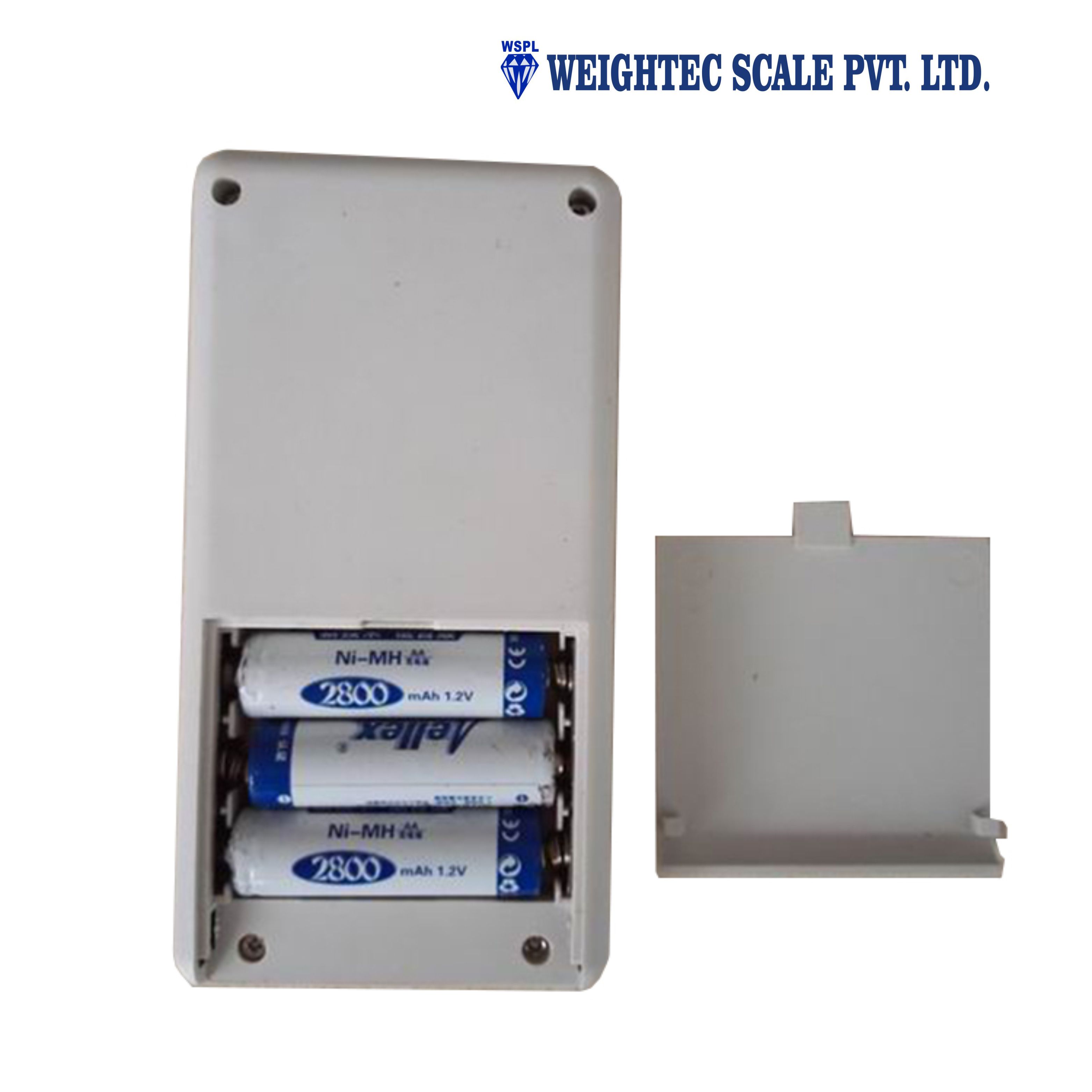

◆ Power supply: DC1.5V AA(5#) X 3

For indicator	Display	LCD,6 digit display
	Weighing Units	kg/lb
	Division	1/2/5/10/20/50/100 optional
	Dimension(mm)	1357024mm
	Power supply	DC1.5v AA(5#) X 3
	External Interface	USB interface or RS232 interface(Optional)
	Printer	none
	Operating temperature	-25°C~50°C, RH 10%~85%, Non-condensing
	Storage temperature	-30°C~55°C, RH 10%~85%,Non-condensing
	Communication	Wireless interface,434M~470MHZ
For wireless sender	A/D conversion method	Σ-Δ 24bit
	Input signal range	–19.8mV~19.8mV
	Load cell excitation	DC 5V
	Max. connection number of load cell	1~12
	Load cell connection mode	4 wire
	Operating temperature	-10 °C ~40 °C
	Allowable working temperature	-40 ° C ~ 70 ° C
	Wireless transmission frequency	430MHz to 470MHz
	Wireless transmission distance	300 meters (in wide place)
