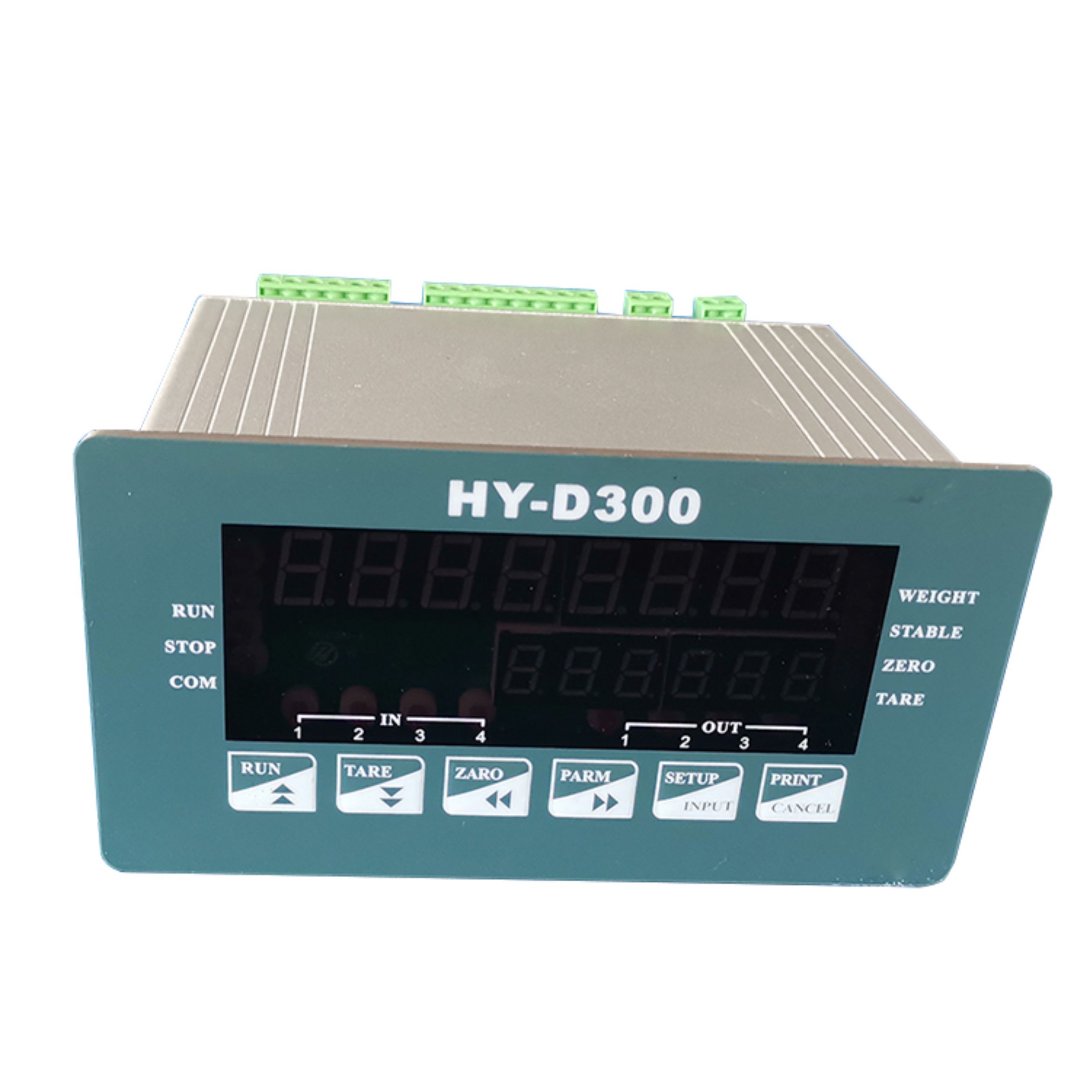

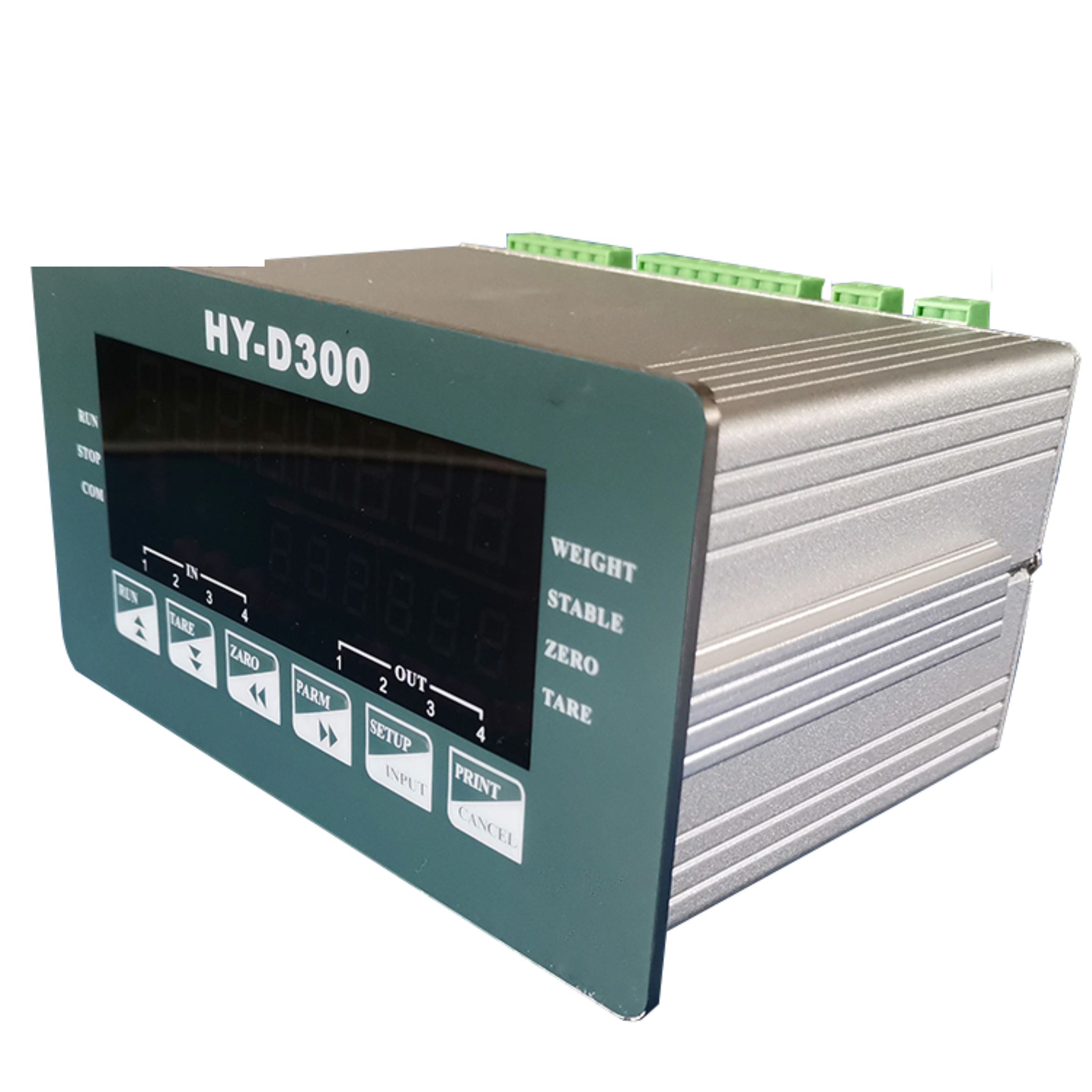

HY-D300

1. Model:                                 HY-D300 weighing control indicator

2.A/D Input signal range:            -20mV～+20mV

3. A/D Internal resolution:          1/1000,000

4. Sample Rate:                        80 times / second

5. A/D nonlinearity:                     <0.003%FS

6. Load cell excitation:              DC5V

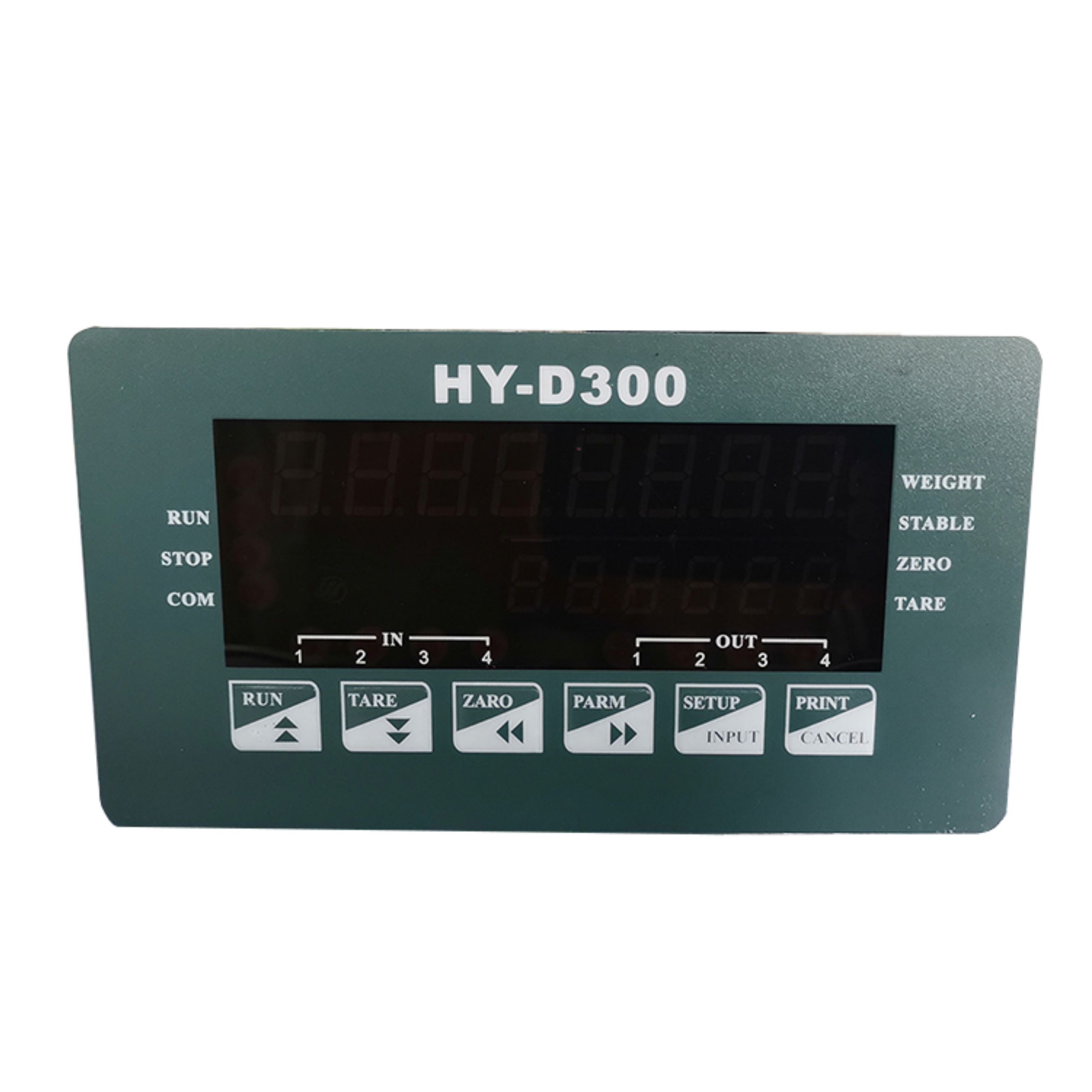

7. Display:                            First row: 8 bits 0.56” LED,

Second row: 6 bits 0.4” LED

7 state indicating signals

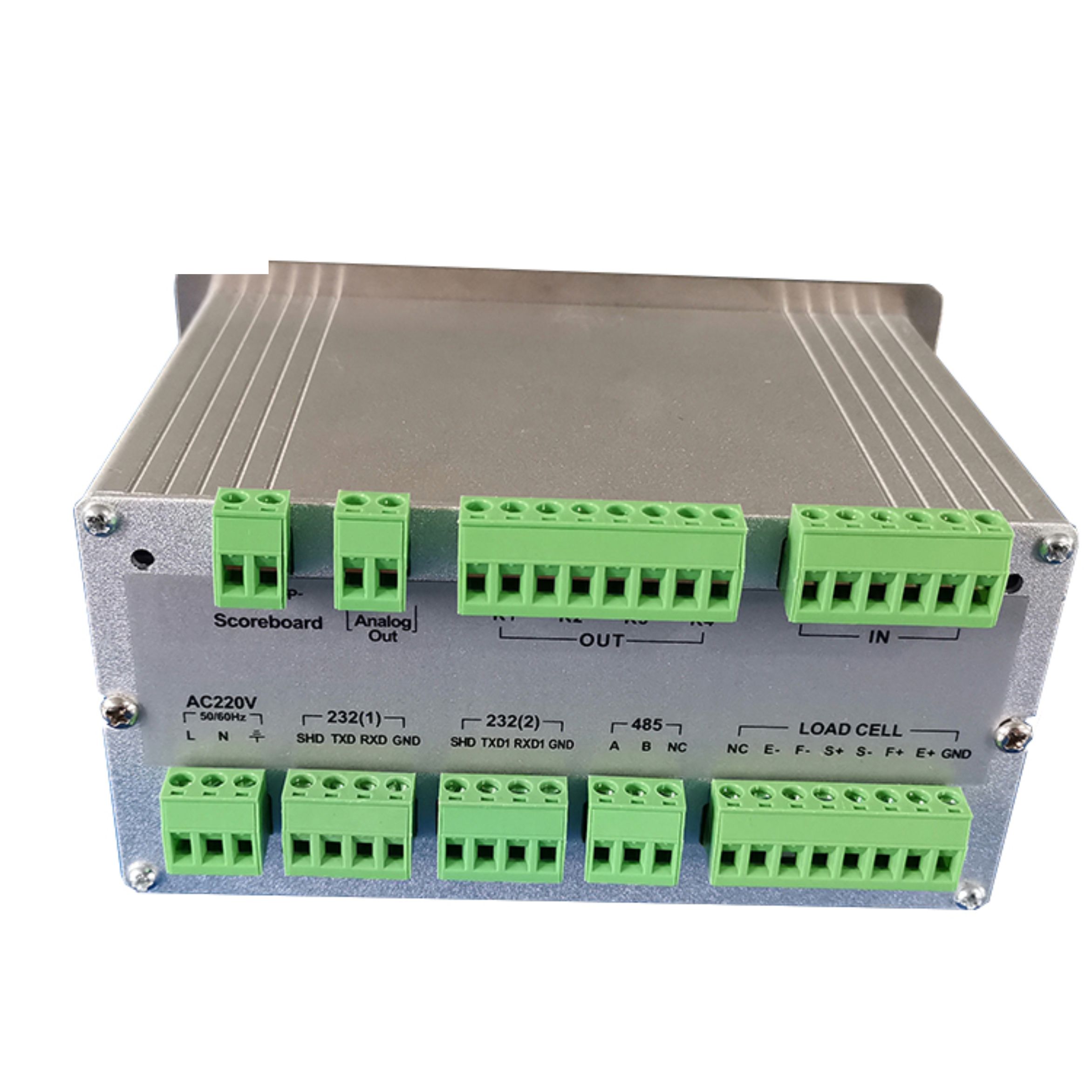

8. Scoreboard interface:              Current loop communicate

9. Communication interface:  RS232C;

RS485/Wireless Optional;

10. Input/Output :            4 input signals;

4 relay output;

4~20mA output

11. Power supply:                       AC220V , DC24(Optional)

12. Operating temperature/humidity:          -10～50℃;≤90%RH

13. Dimension:              164mm x 89mm x 120mm

14. Hole size:                152mm x 76mm

Work mode:

Set the process number

0: no

1: Upper and lower limit comparison

2: An additive mode of ingredients

3: A subtractive mode of ingredients

4: Addition mode of two ingredients

5: Sorting scale self-check mode
