Technical Parameter

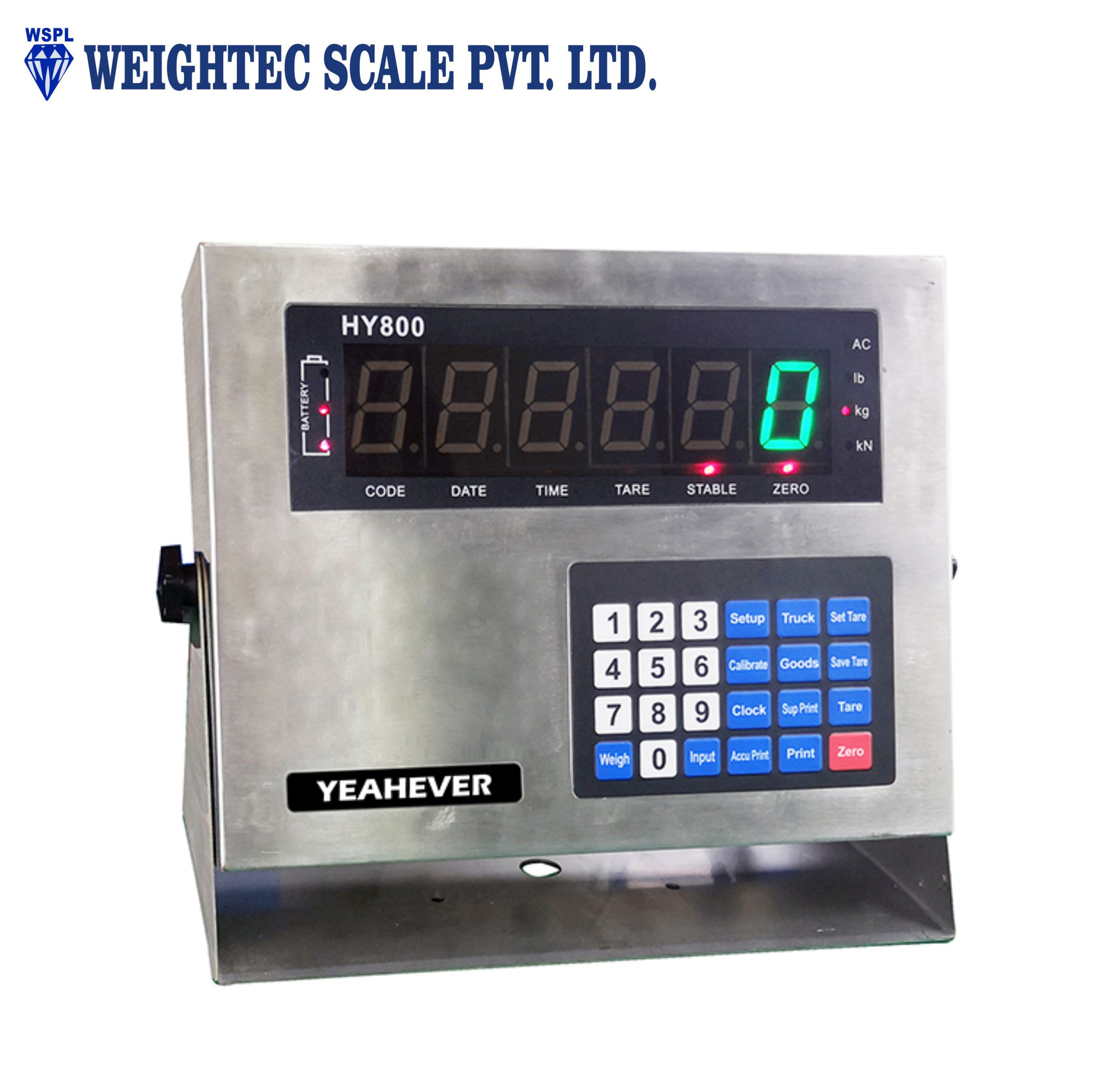

l Model : HY800
l Analog signal input range: -20mV ~ +20mV
l AD internal conversion accuracy: 1/1000,000
l Sampling rate: 80 times /s
l A/D nonlinearity: <0.01%FS
l Excitation voltage of load cell: DC5V
l Max. connection number of load cell: 8 at 350 ohm or 16 at 700 ohm
l Display: 6 pcs 1.2 "LED , 12 pcs status indicators
l Keyboard: 0~9 numeric keys, 14 function keys
l Clock: display year, month, day, hour, minute, second, automatic leap year, leap month

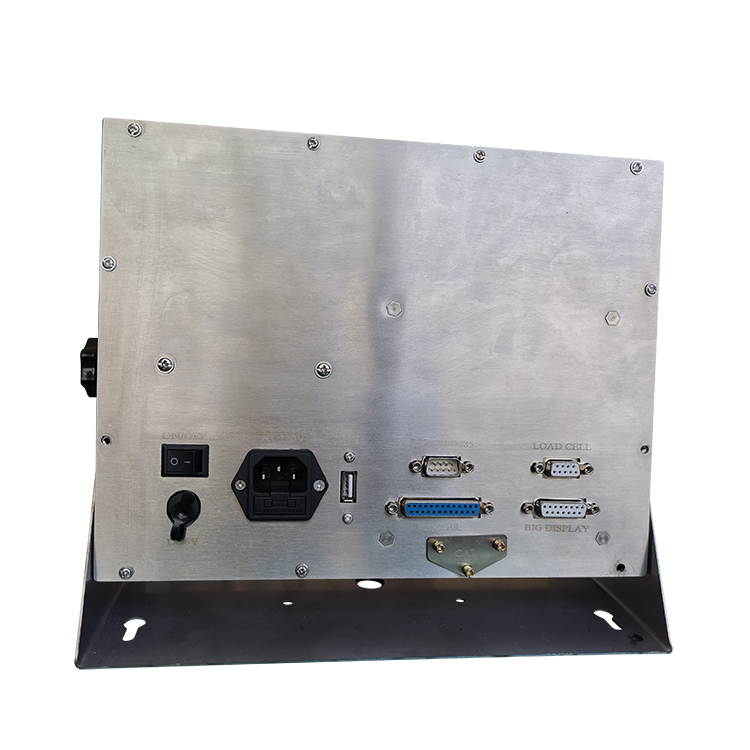

l Interface for big display: current ring and RS232 (600bps)
l Communication interface: RS232 and RS485, wireless communication mode optional; 1200/2400/4800/9600/19200 is optional
l Usb interface: USB2.0/3.0
l Print interface: standard parallel print interface configuration, ESPON LQ-300k + Ⅱ, ESPON LQ-300 k, ESPON LQ-680 k, ESPON LQ-730 k, ESPON LQ - 1600 k (+), KX - P1131, KX - P1121, DS-300 line printer;
-P with thermal printer;
l Data storage 1000 sets of tare weight, 1000 sets of one-time weighing records, 500,000 sets of secondary weighing records (can be exported to the computer through U disk or serial port)
l Power voltage: AC220V, DC6V/10A rechargeable battery
l Operating temperature and humidity: -10 ~ 50℃; 90% RH or less
l Size: 270mm x 210mm x 75mm
l Self-weight: about 3.5kg
