Description:
|
A/D conversion method |
Σ-Δ 24bit |
|
Input signal range |
–19.5mV~19.5mV |
|
Load cell excitation |
DC 5V or 3.3V |
|
Max. connection number of load cell |
1~4 |
|
Load cell connection mode |
4 wire |
|
Operating temperature |
-10 °C ~40 °C |
|
Allowable working temperature |
-40 ° C ~ 70 ° C |
|
Wireless transmission frequency |
430MHz to 470MHz |
|
Wireless transmission distance |
200 meters (in wide place) |
|
Dimension
|
100x67x40mm
|
Energy conservation
It can not receive the wireless signal from wireless indicator in 1 minute, the system automatically enter to sleep mode for save energy;
The system will automatic wake-up to enter to weighting mode When it receive the wireless signal from indicator in 8 seconds.

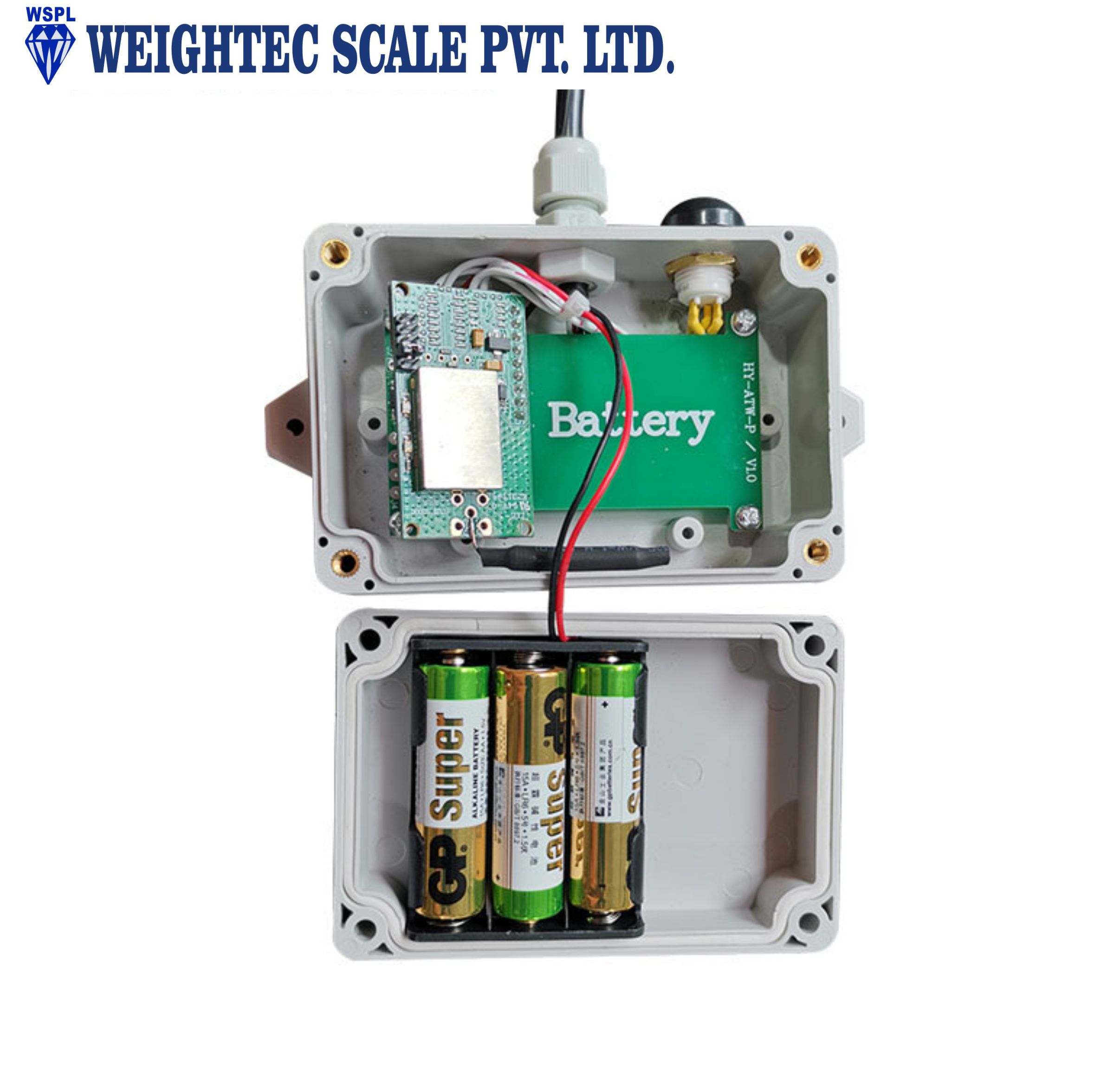

1- Power : AA1.5V*3 or Lithium battery-7.4v or 3.7v (DC charge port：DC8.5V or DC4.2V /1000mA,Inner:+ Outside:- ）
2- Indicator light: It will light while working.

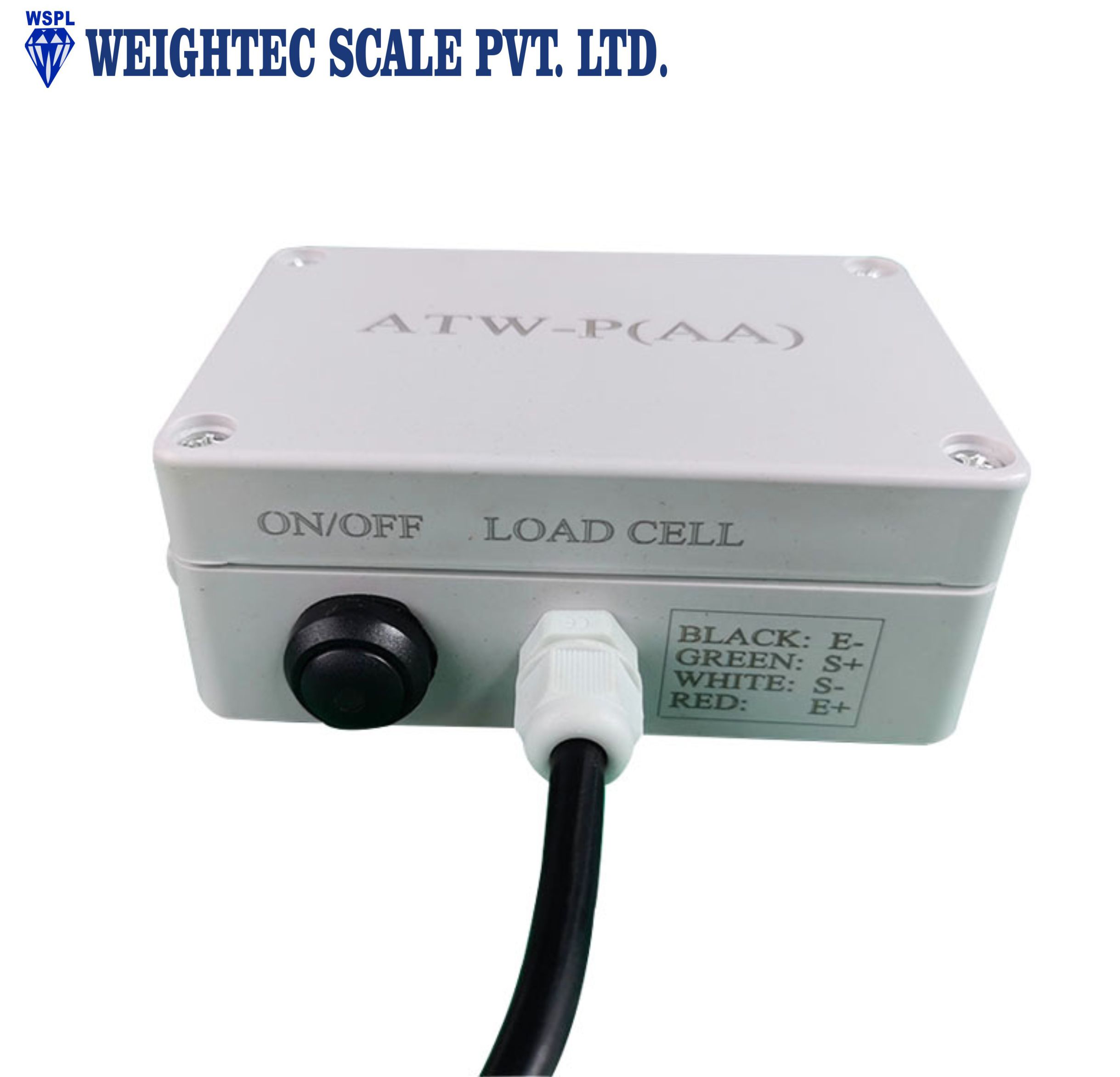

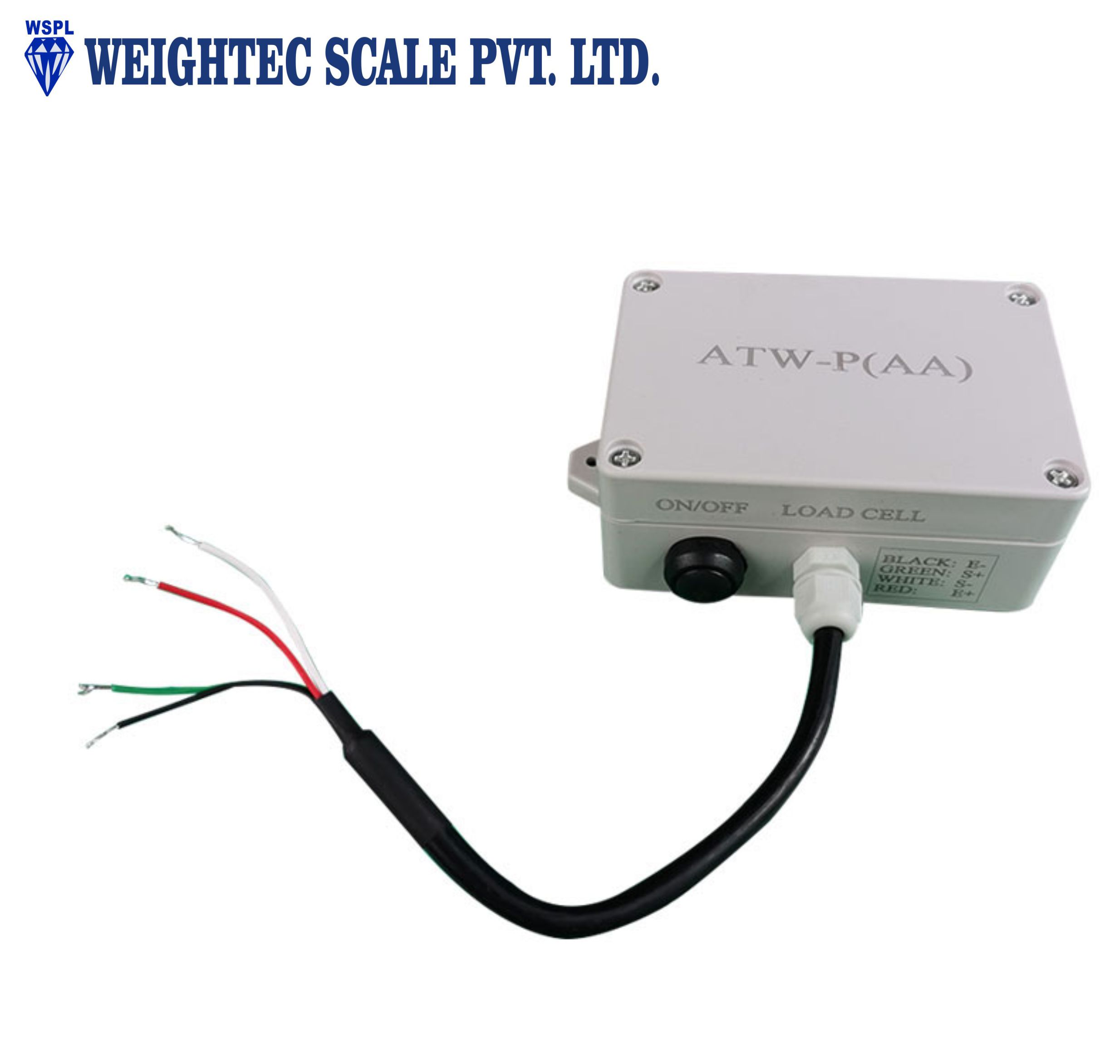

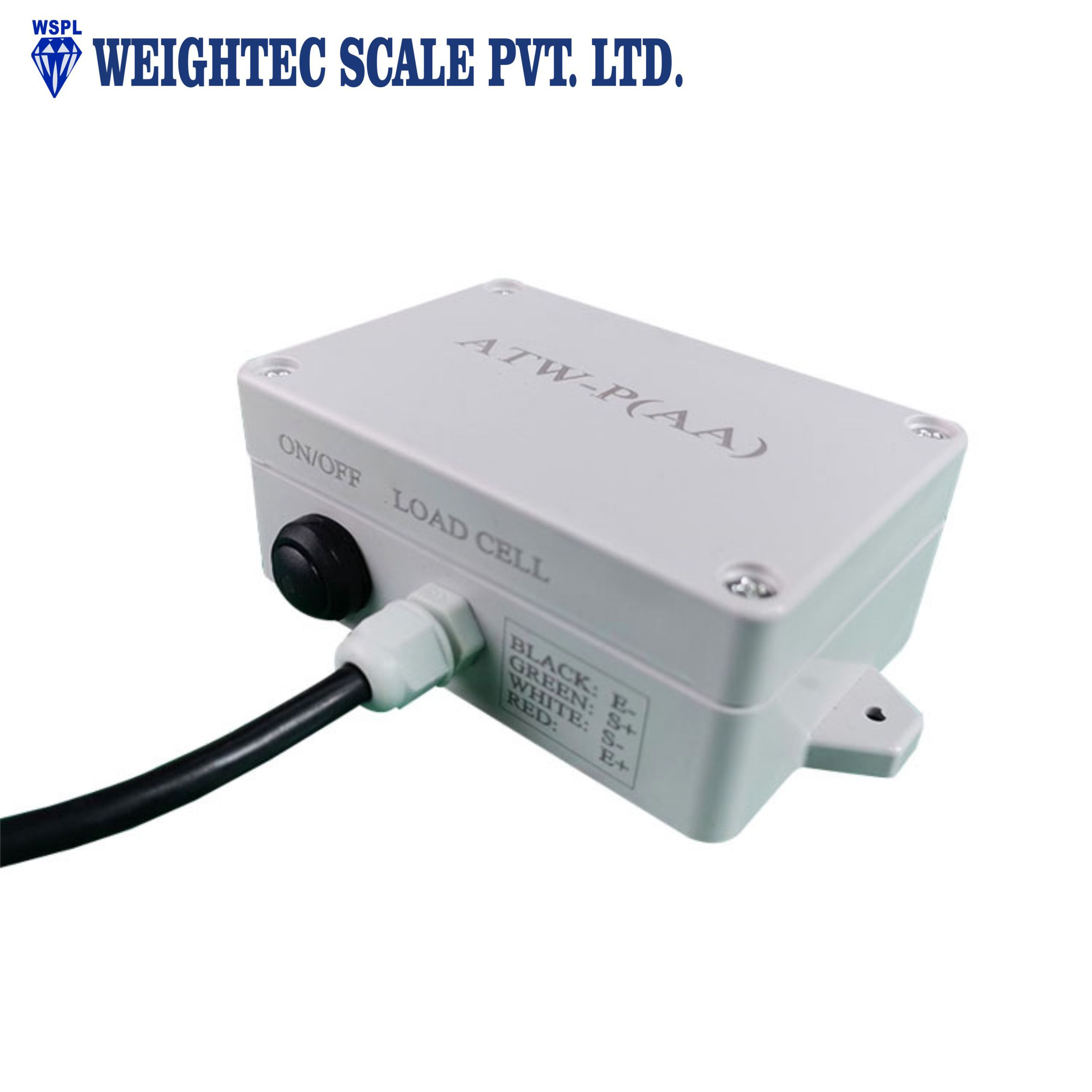

3- Load cell port:
|
PIN1 |
E- |
Excitation- |
|
PIN 2 |
S+ |
Signal+ |
|
PIN 3 |
S- |
Signal- |
|
PIN 4 |
E+ |
Excitation+ |
